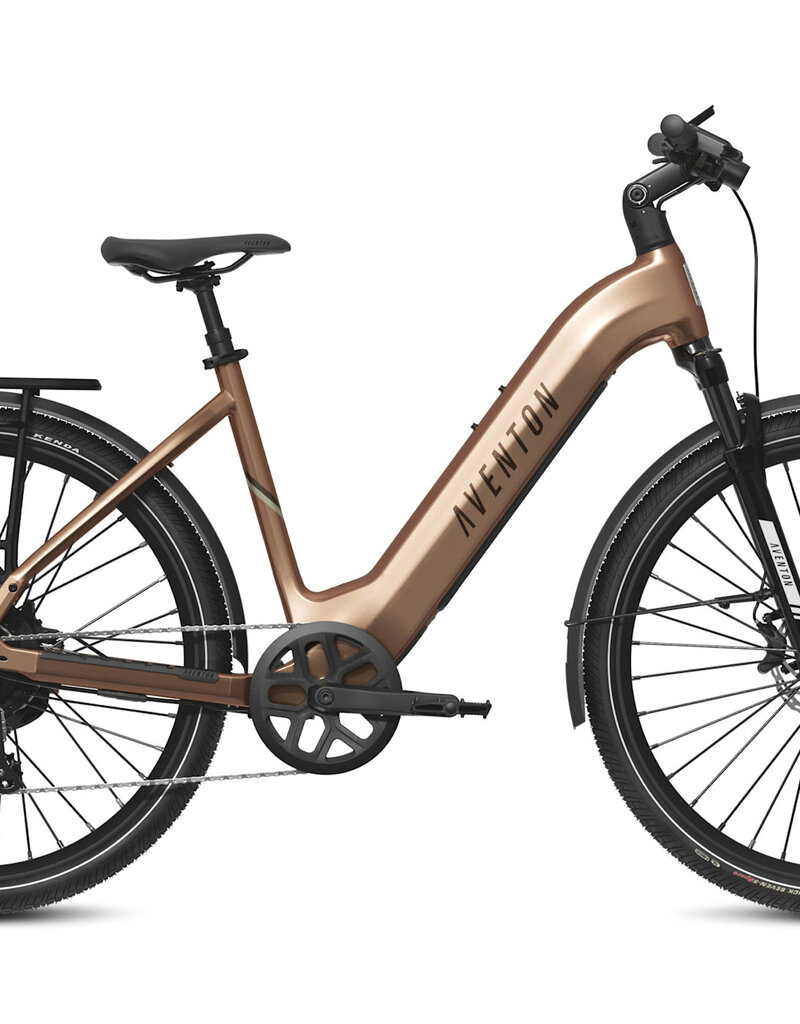

Model - Level 3 Step Through Commuter eBike
Total Weight Limit - 300 lbs
Rider Height - 4'11" - 6'1"
Ebike Class - Class 2 Ebike
Pedal Assist - 3 Levels (with Ride Tune Customization)
Frameset
Frame - 6061 Aluminum, Gravity Cast Front Triangle
Fork - Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Frame Style - Step-Through
Wheelset
Front Wheel - 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel - 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires - Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
eBike System
Motor - 36V, 500W (sustained), 864W (peak)
Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 36V Output: 42V/ 4A
Charging time from 0% to 100% - 5 hours
Lights - Front and rear lights integrated
Brakes
Front Brake - Magura AT-2 Hydraulic disc brake
Rear Brake - Magura AT-2 Hydraulic disc brake
Front Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur - Shimano Altus RD-M310
Shifter - Shimano 8 Speed Trigger SL-M315-8R
Cassette - 12-32T / 8 Speed Shimano CS HG200-8
Crankset - 3pc, 170mm crank arm
Bottom Bracket - Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals - 9/16" Composite Platform
Cockpit
Saddle - Aventon Saddle
Seatpost - 30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars - Aluminum 31.8mm, 680mm
Grips - Aventon Lock on grips
Headset - Sealed Bearing Headset
Included Accessories
Rear Rack Weight Limit - 60lbs
Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb
