General Info

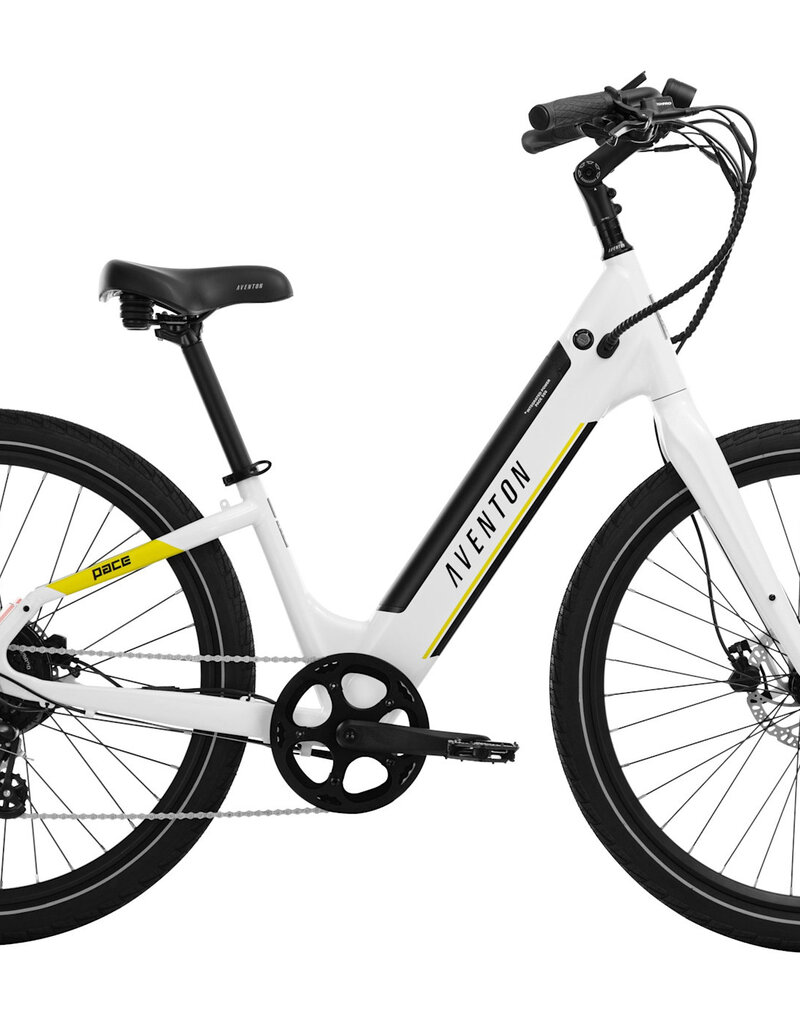

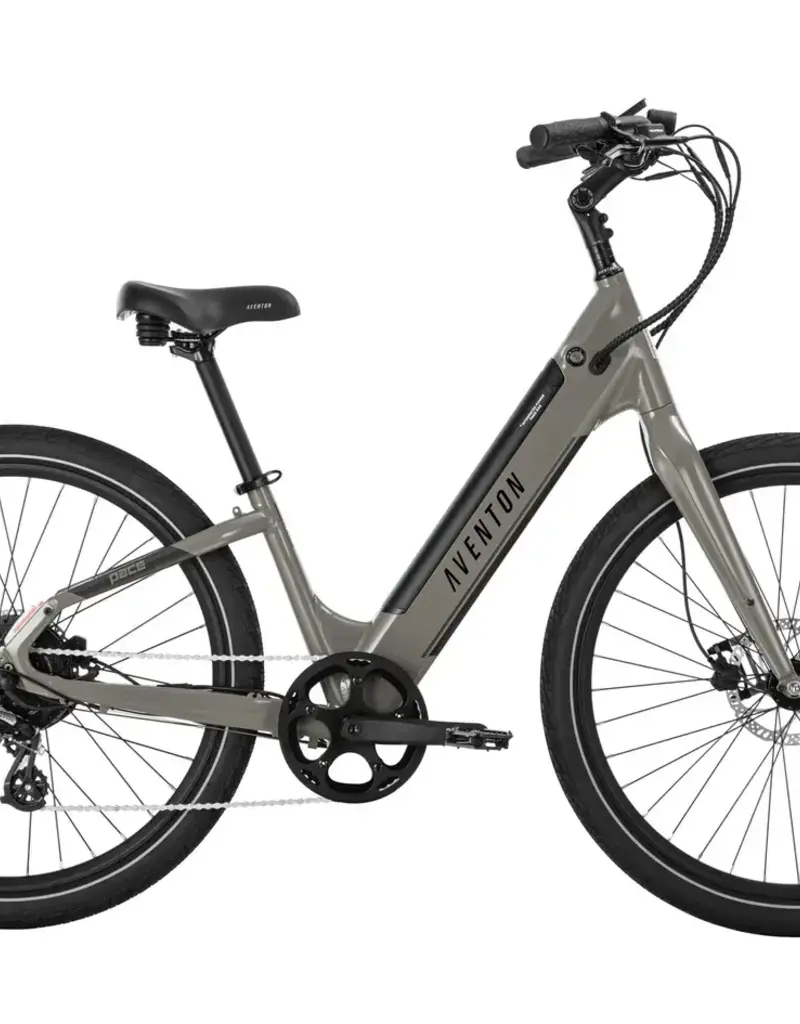

Model - Pace 500.3 Step-Through Ebike
Total Weight Limit - 300 lbs
Dimensions - Bike Box 150cm x 27cm x 86cm
Rider Height - 4'11" - 6'1"
Frameset
Frame Style - Step-Through
Frame - Single-Butted Aluminum Alloy
Fork - AE-E08 PACE V2 AL fork
Wheelset
Rim - Double Wall Aluminum 36h Front & Rear
Tubes - Butyl Rubber, Schrader Valve
Hubs - 36H Disc Nutted Front, Nutted Rear
Tires - 27.5 x 2.1 Puncture Resistant, Reflective Sidewalls
Ebike System
Throttle - Aventon LH Handlebar Mounted
Display - LCD Smart "Easy Read"
Battery - 48V, 12.8Ah (614Wh), LG Cell, UL 2849 Compliant
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 48V, 3 Amp Fast Charger
Lights - Front and rear lights integrated
Motor - 48V, 500w sustained, 864w peak brushless hub motor
Brakes
Brakes - Hydraulic
Drivetrain
Bottom Bracket - Square Taper, Sealed, Torque Sensor
Pedals - 9/16" Alloy Platform
Cassette - 12-32T, 8 Speed
Rear Derailleur - Shimano 8 speed
Shift Lever - 8 Speed Trigger
Chain - 122 Link, 8 Speed
Cockpit
Seatpost - Forged Alloy, 30.9mm 2-Bolt Clamp
Stem - Threadless, 31.8mm, 90mm
Seat Clamp - 34.9mm Quick Release
Handlebars - Aluminum 31.8mm, Sweptback
Headset - Sealed Bearing Headset
Grips - Ergonomic Comfort
Included Accessories
Kickstand - Included, rear mount
Technical Overview
The Pace 500.3 comes out of the box as a Class II ebike, with pedal assist and throttle. It can be unlocked to a Class III ebike. The Pace 500.3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.
