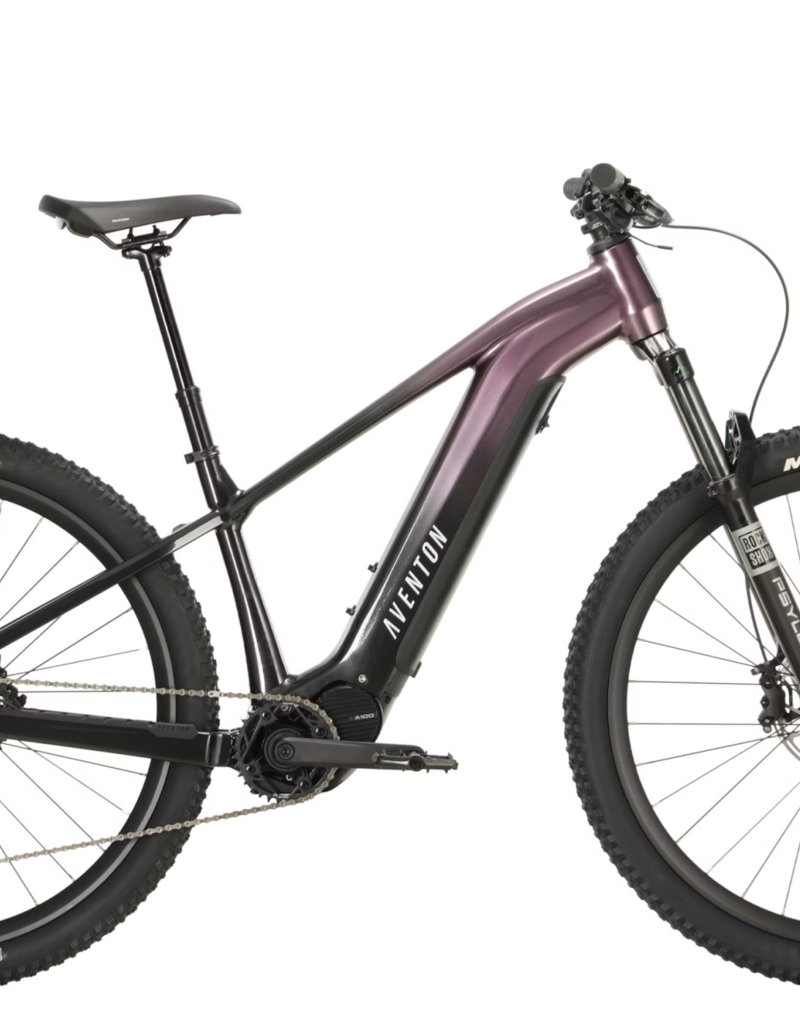

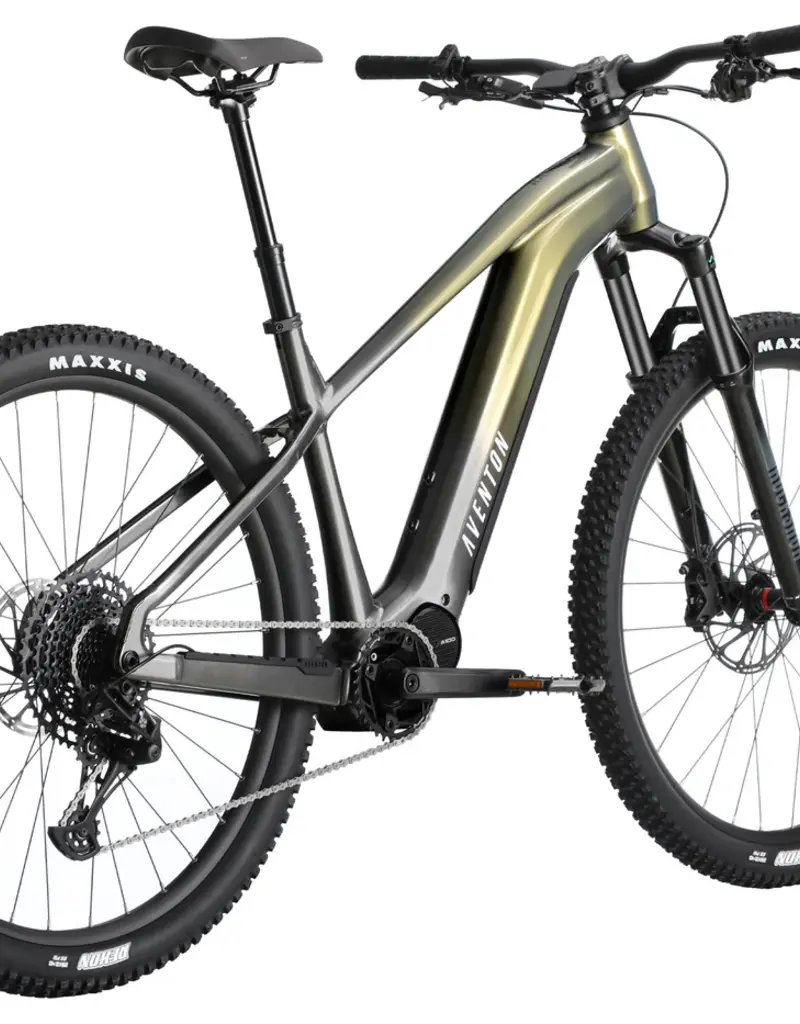

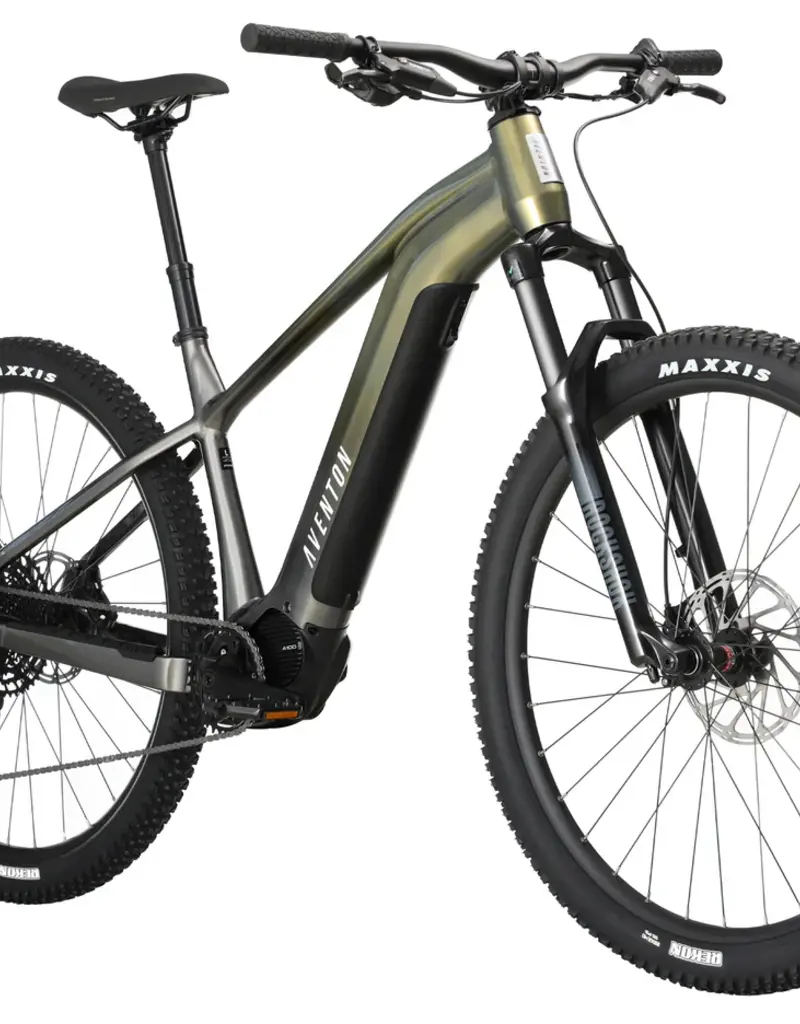

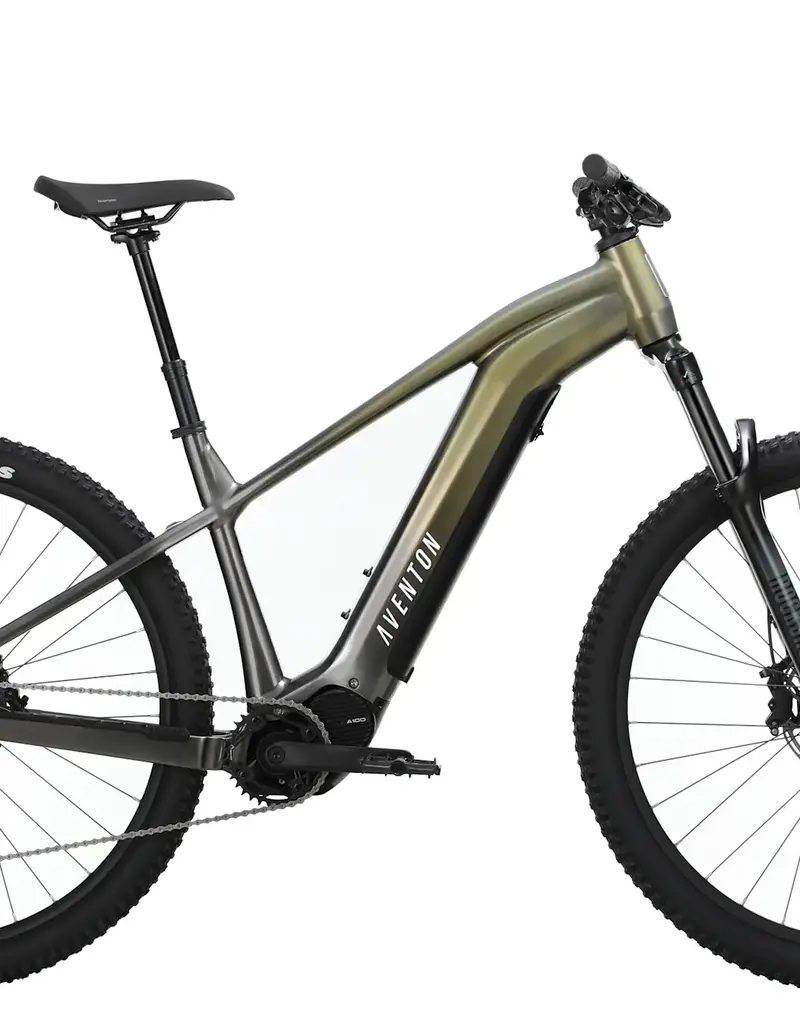

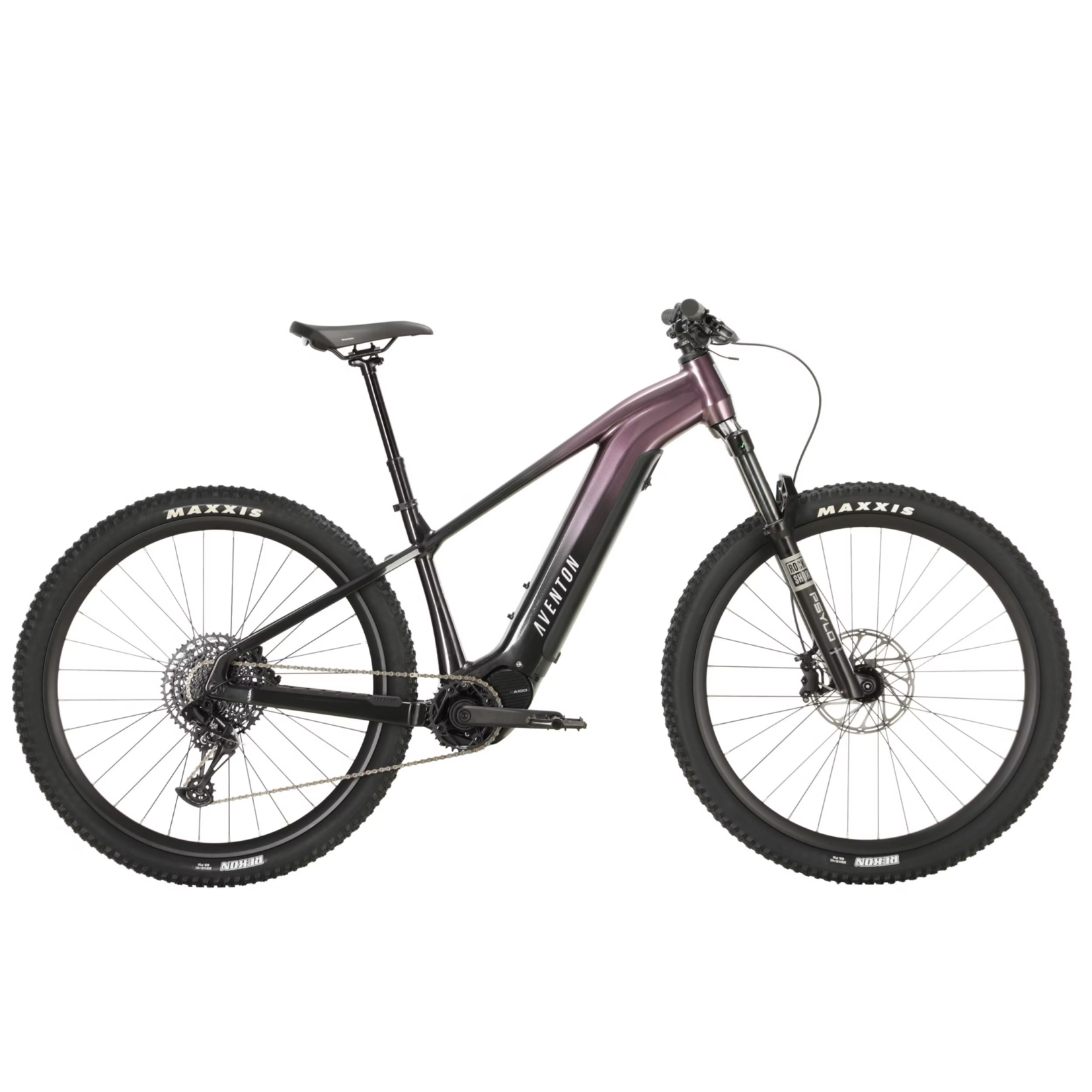

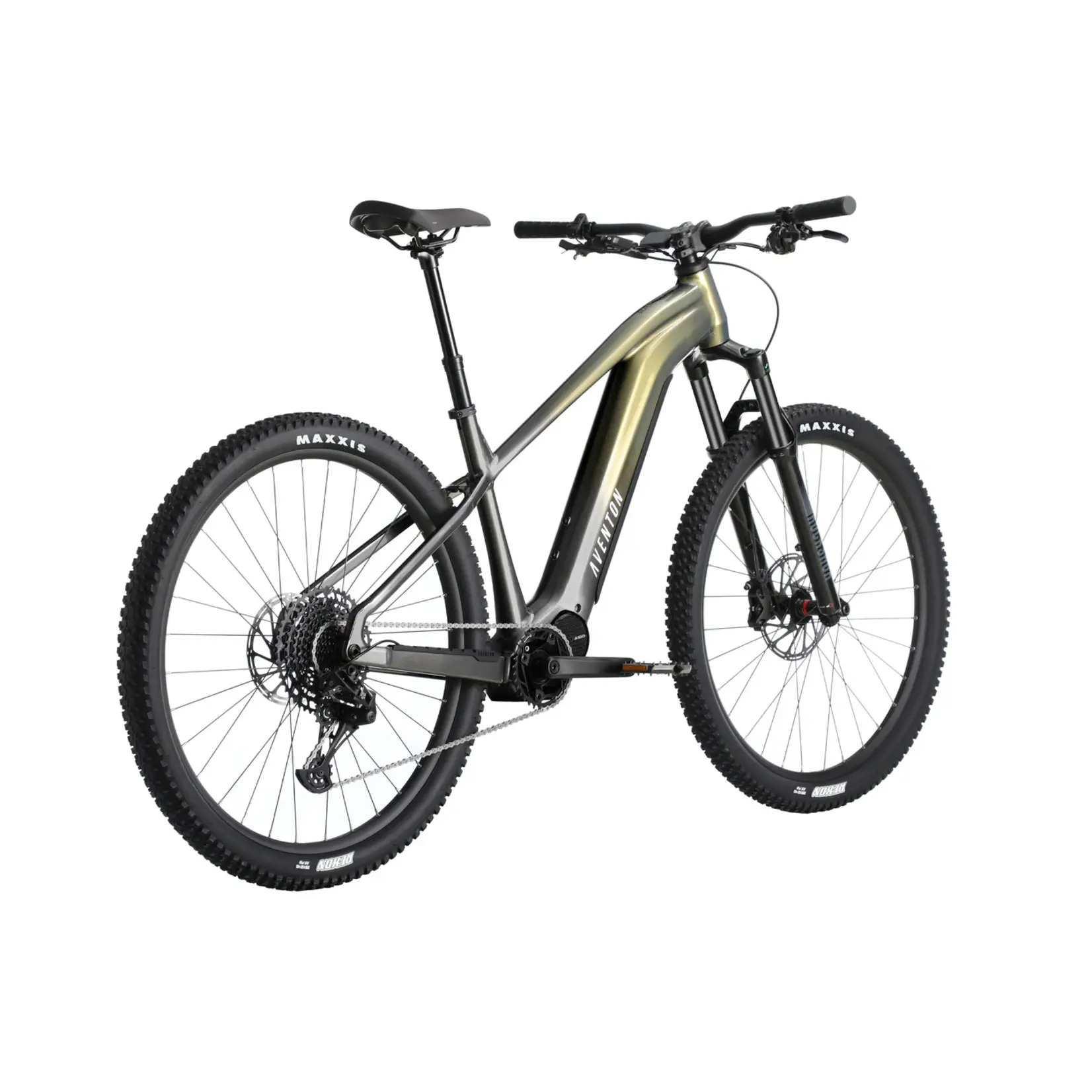

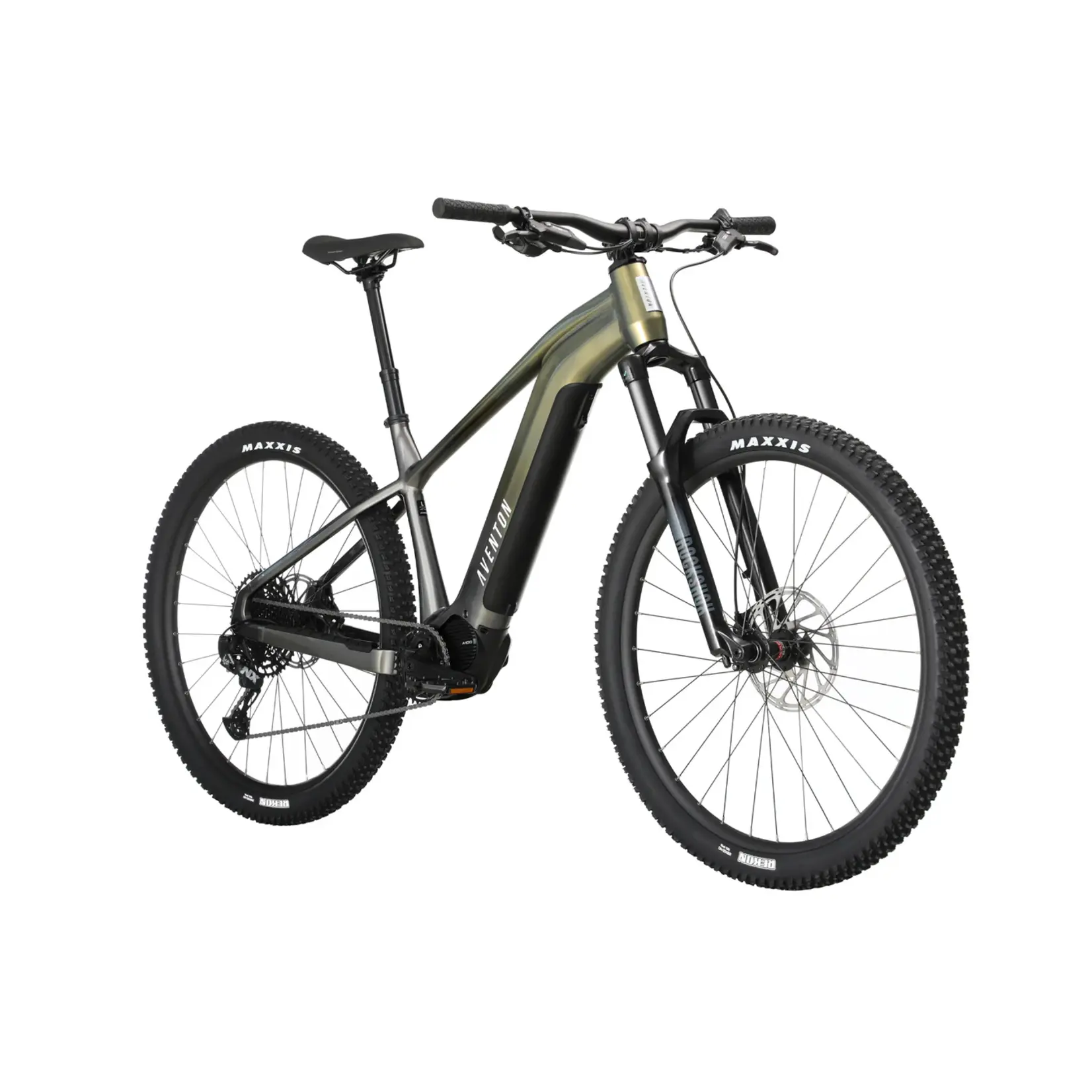

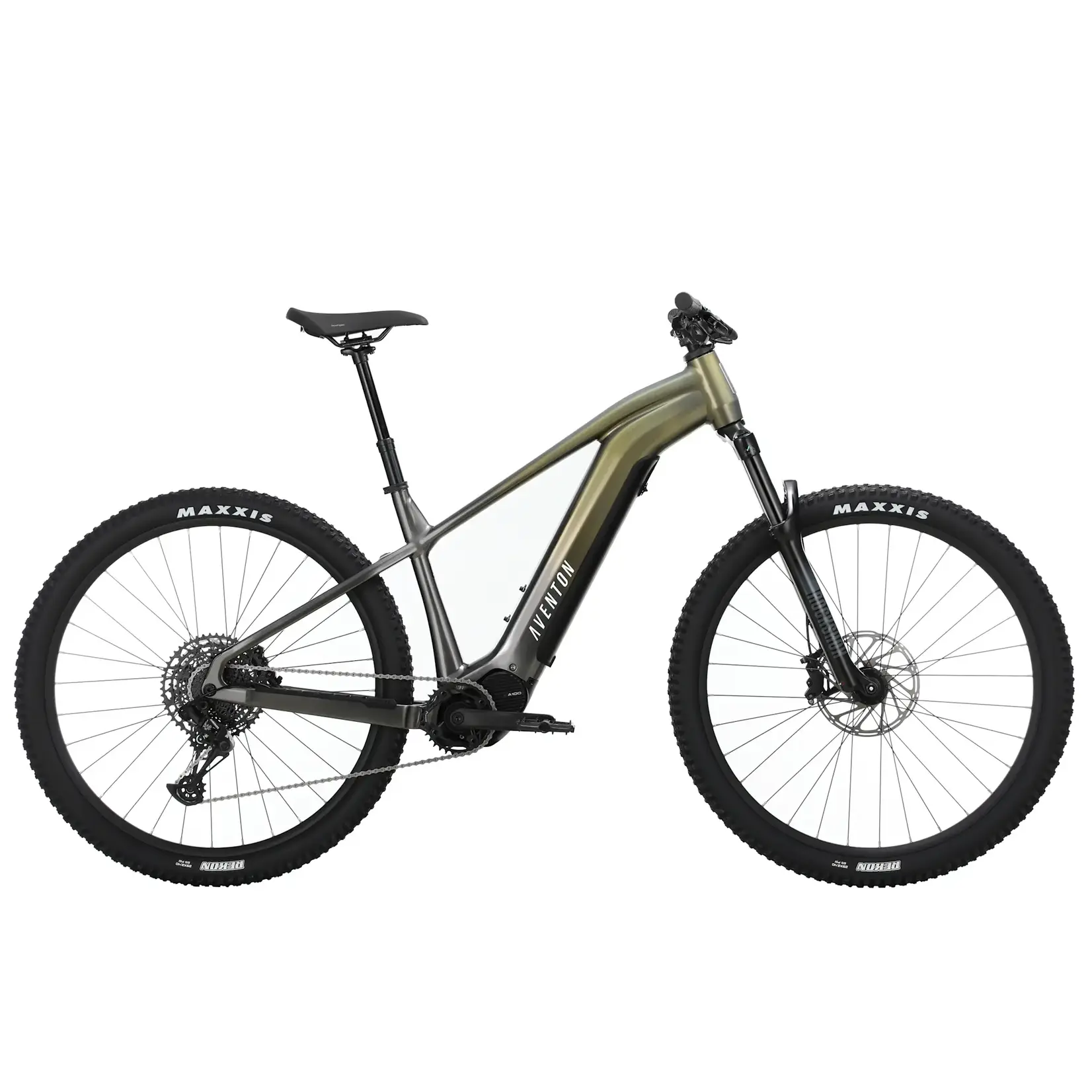

Carve out the uncommon route with Ramblas, Aventon’s first-ever electric mountain bike (eMTB) with an intelligent mid-drive motor. Rugged and reliable, this hardtail, all-terrain ebike offers the ultimate comfort on mountain trails or city streets. Engage its three pedal assist levels and range of up to 80 miles to roam, ramble, and revel in the more dynamic side of the ride. With Ramblas, it’s mountain time, all the time.
Aventon’s Ramblas comes equipped with a first-ever mid-drive motor for the Aventon line-up. The mid-drive is Aventon-designed offering riders personalized tuning capabilities through the Aventon app for an amplified natural riding experience. Adjust the three PAS levels to fine-tune its overall rideability.
General Info
Weight - 54lbs, size large, w/o pedals
Total Weight Limit - 300 lbs
Ideal Use - Mountain Biking, Urban Riding
Rider Height - 5'1" - 6'5"
Frameset

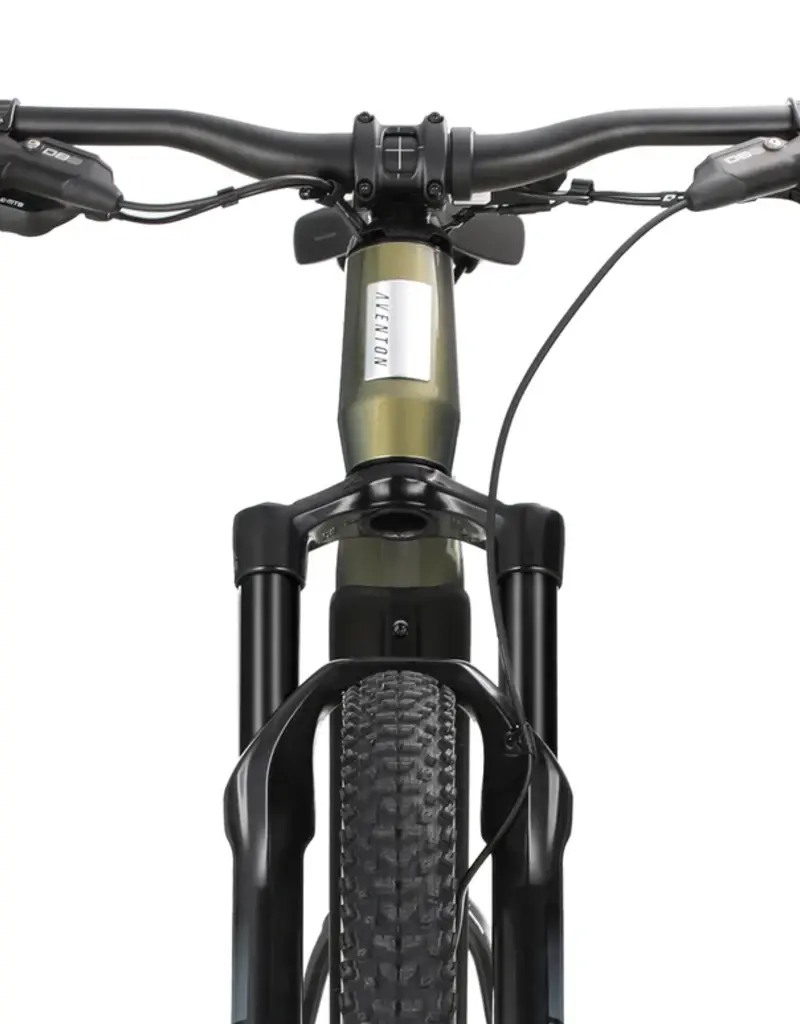

Fork - BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15x110 QR axle, 1.5" tapered steerer tube AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5"tapered steerer tube, Rebound adjust
Frame - 6061 Single-Butted Aluminum Alloy
Wheelset
Hubs - 15x110 32H Front, 12x148 32H Rear
Rim - Double Wall Aluminum 32h Front & Rear
Spokes - Black Stainless 13 Gauge
Tires - S Maxxis Rekon 27.5x2.4, M/L/XL Maxxis Rekon 29x2.4
Tubes - Butyl Rubber, Presta Valve
eBike System

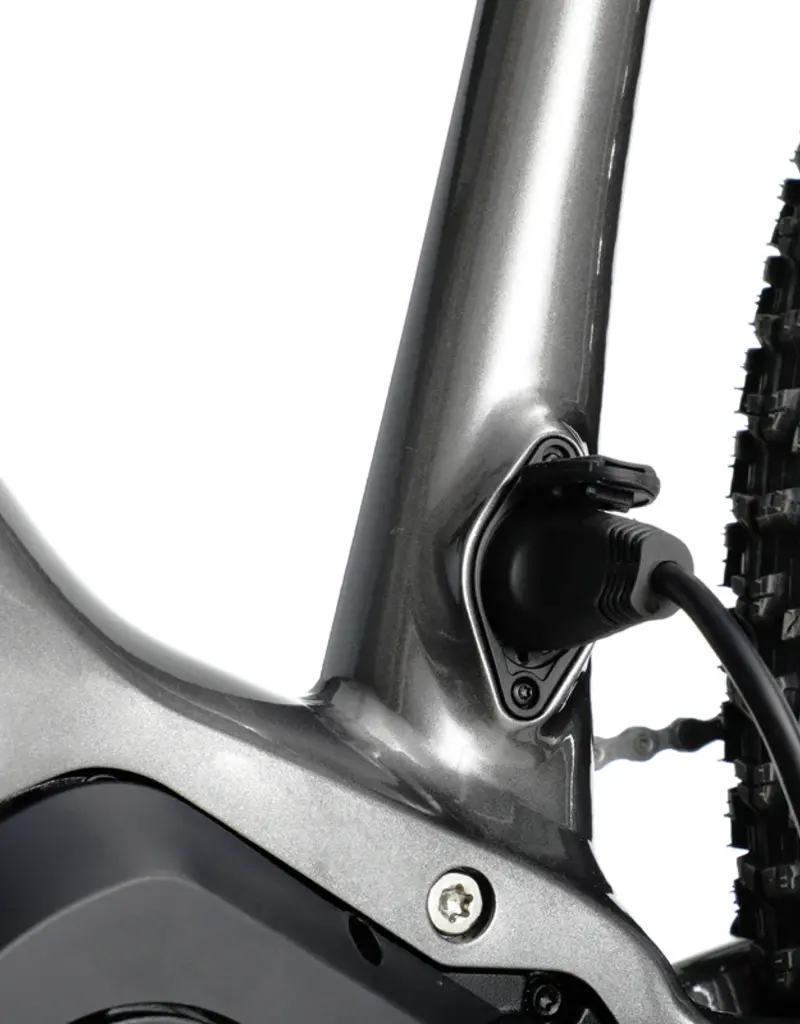

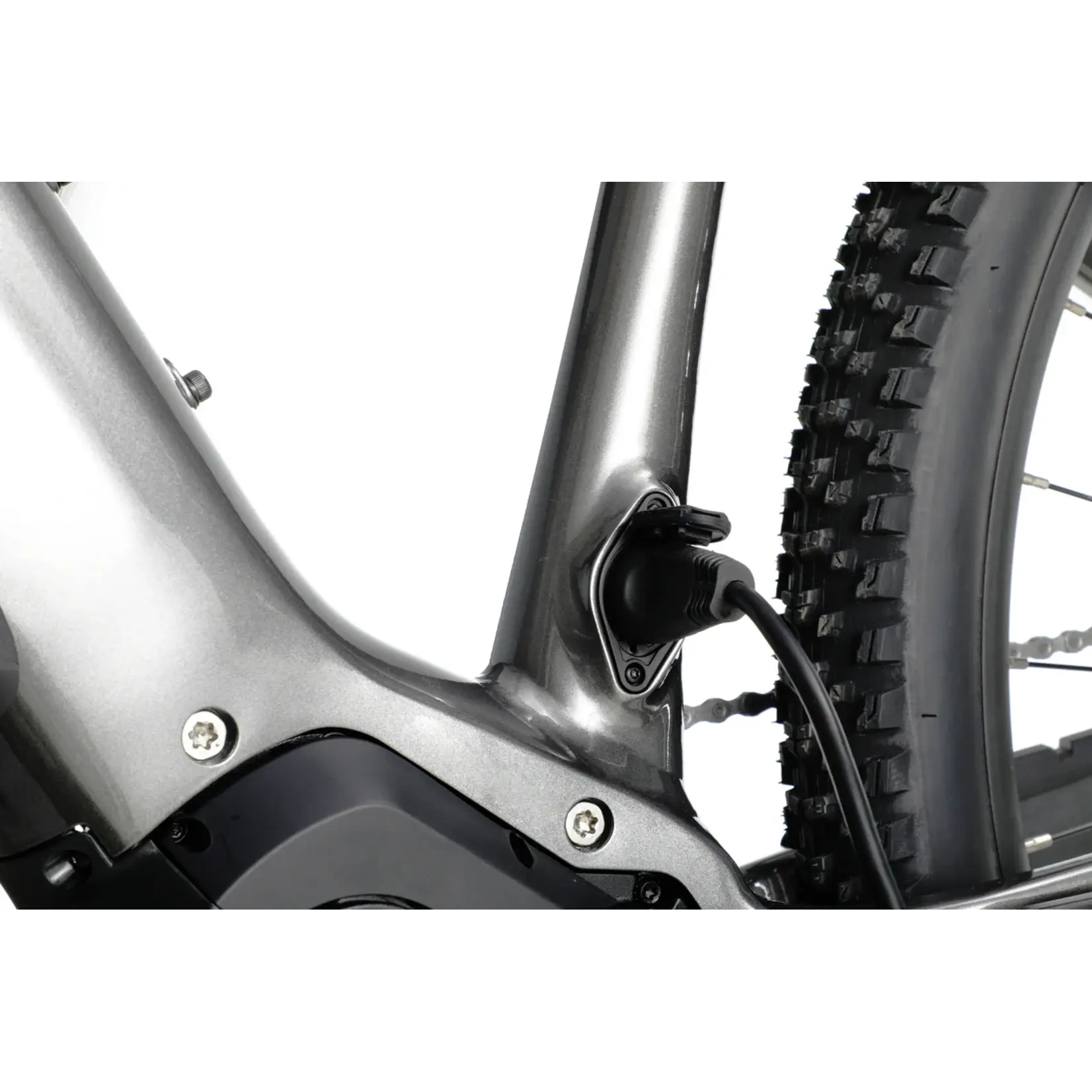

Battery - Aventon 708 WH. 36V LG 21700 cells.

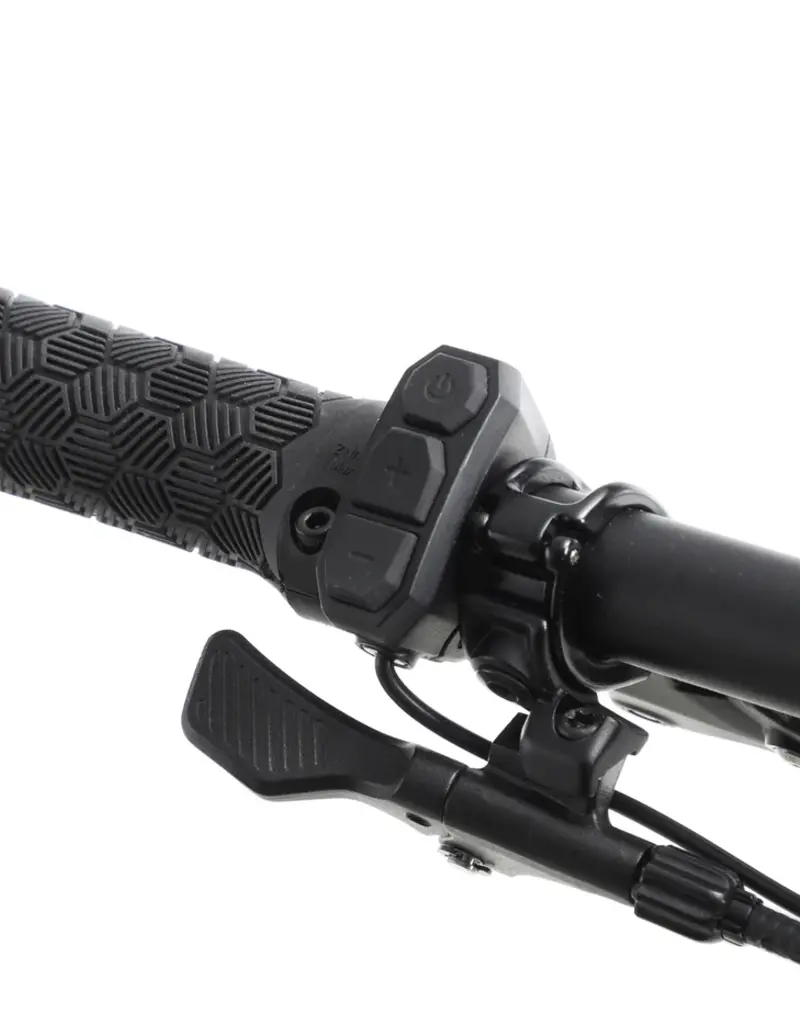

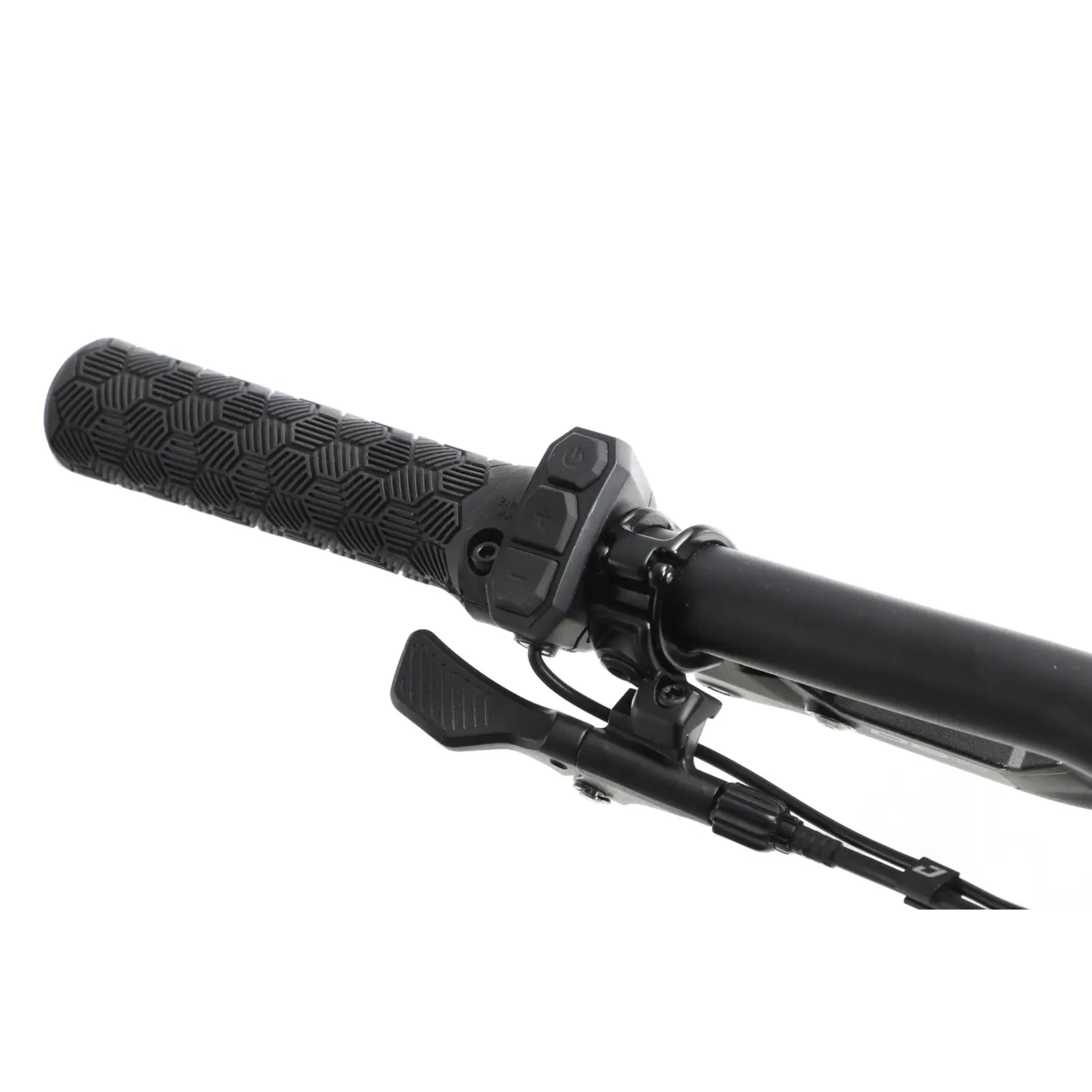

Display - LCD Smart "Easy Read"

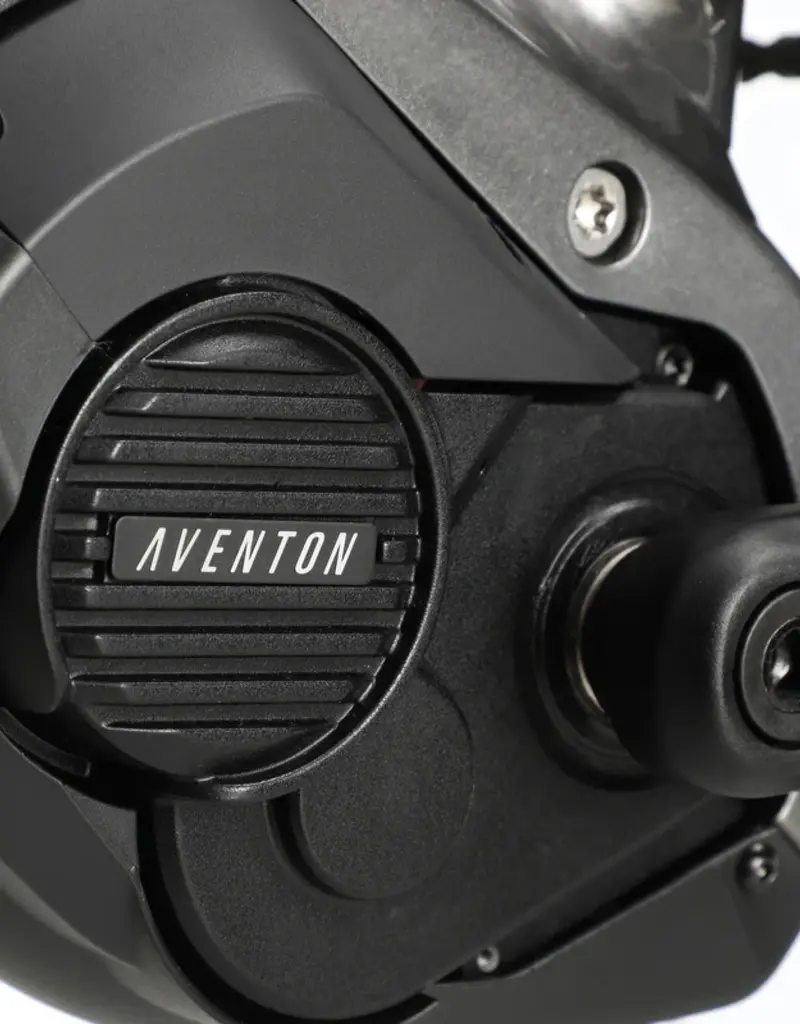

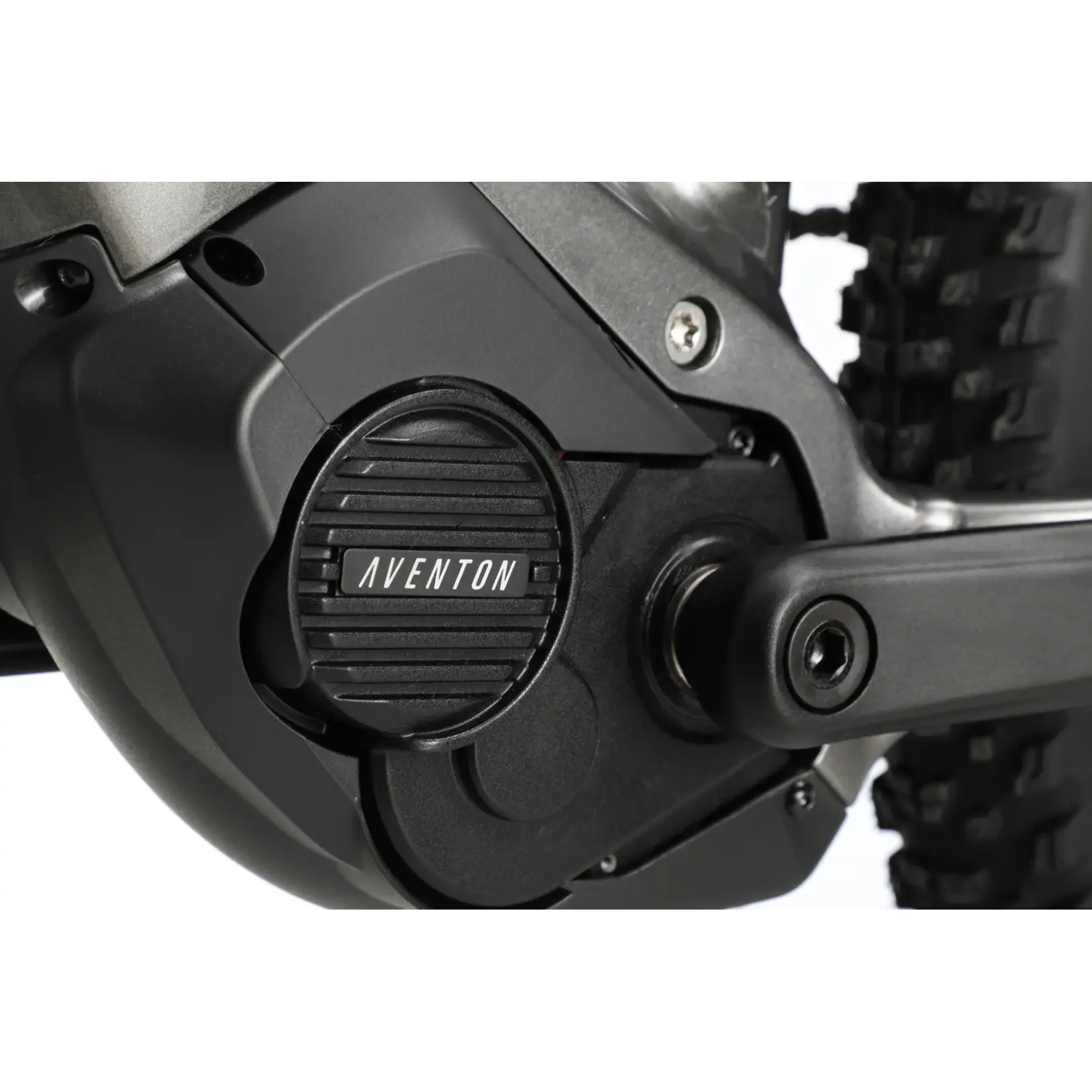

Motor - Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Brakes
Rear Brake Rotor - Sram 180mm 6 bolt
Front Brake Rotor - Sram 200mm 6 bolt
Brakes - Sram DB8 mineral 4 piston hydraulic disc brakes
Drivetrain

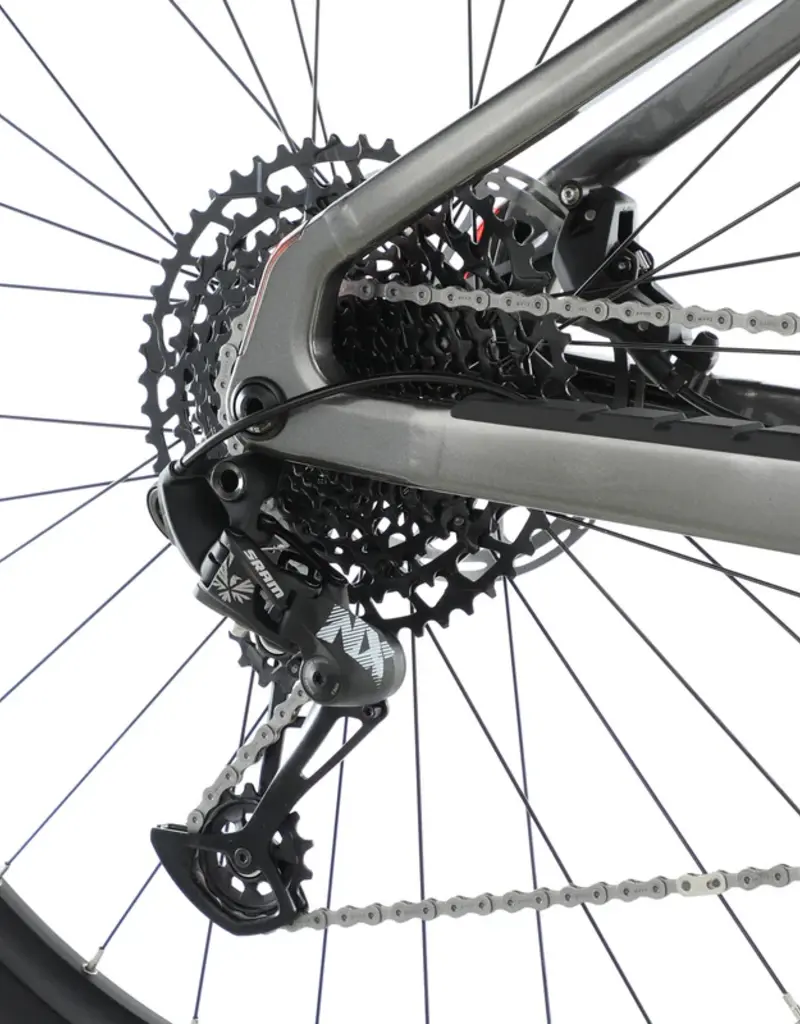

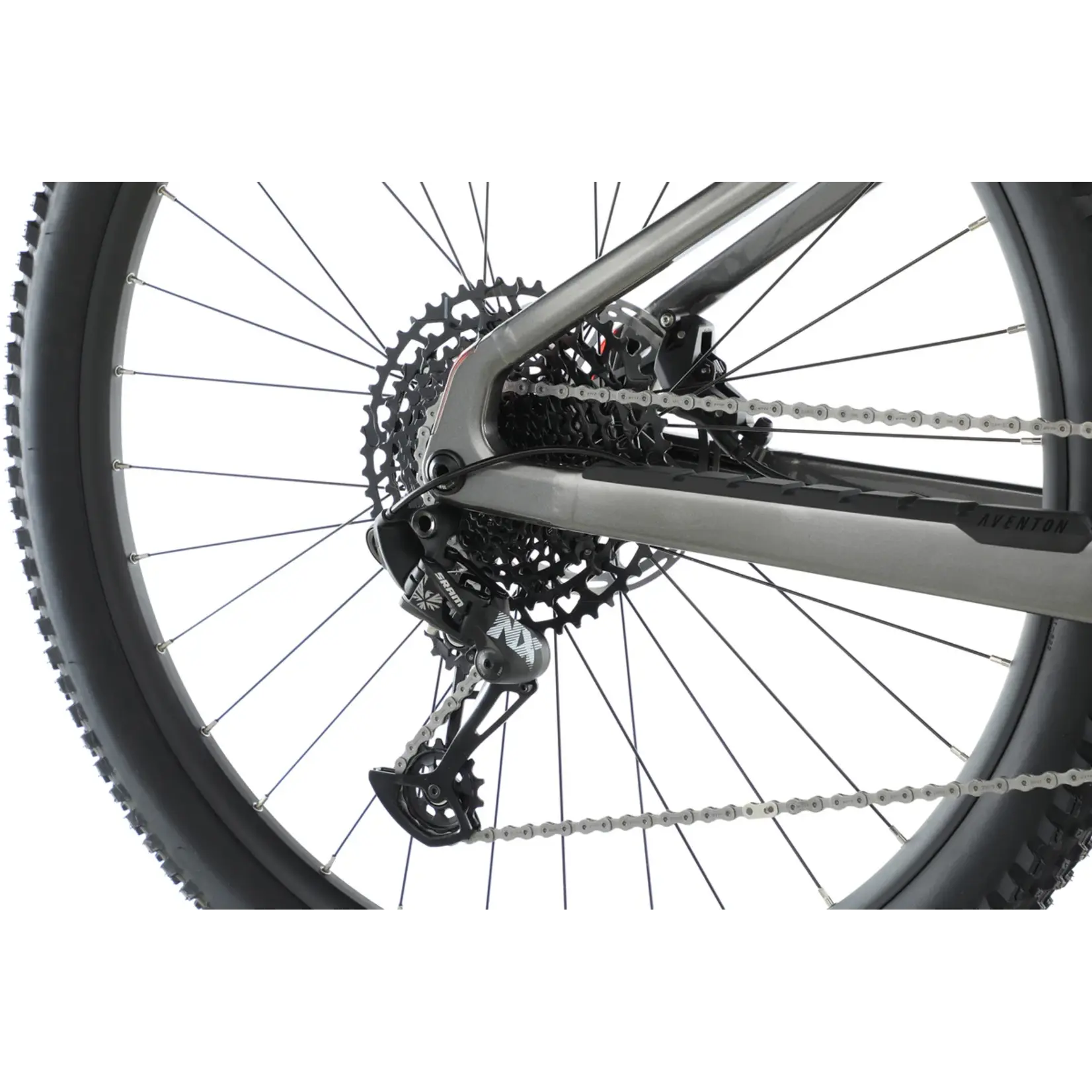

Rear Derailleur - Sram NX Eagle 1x12
Pedals - 9/16" Alloy Platform

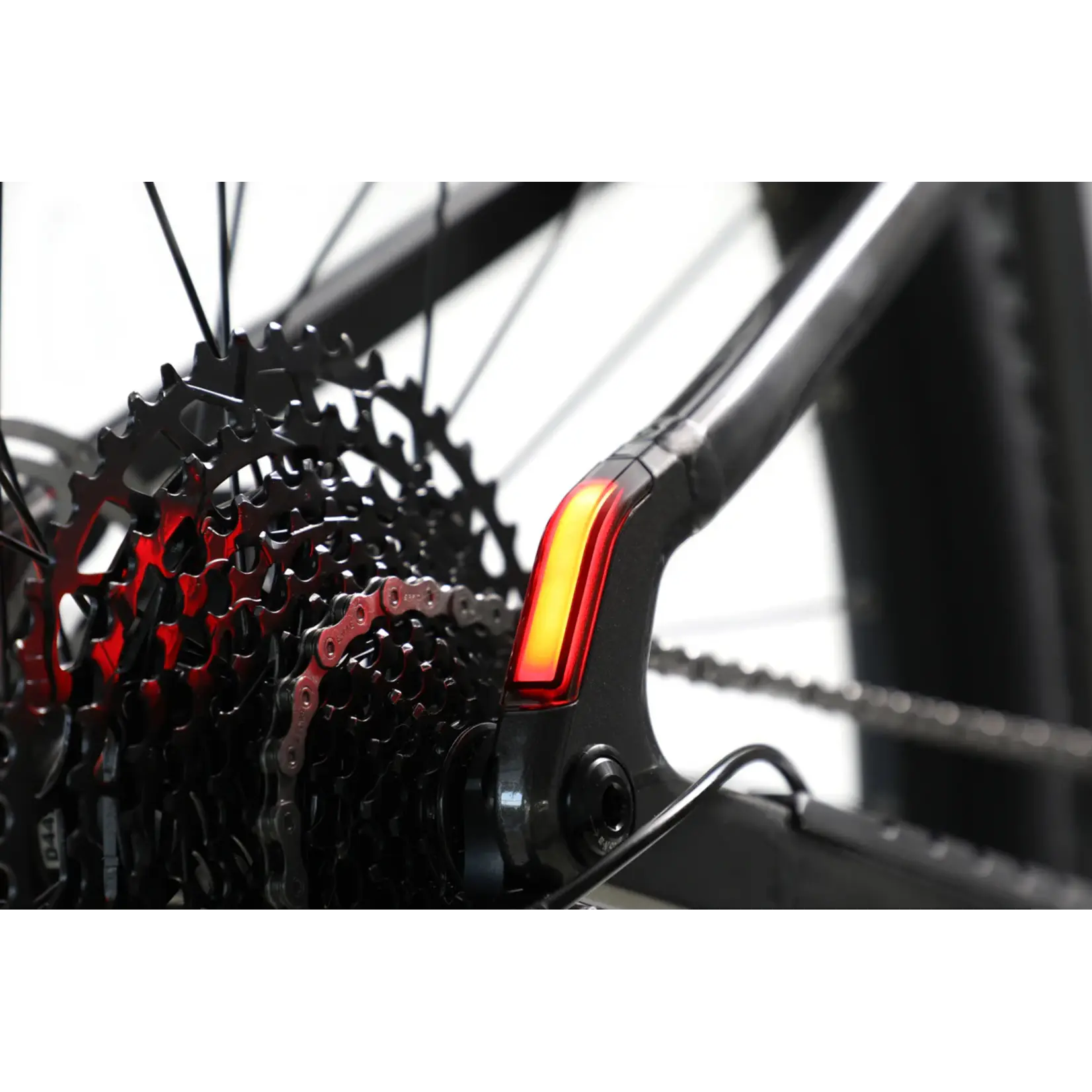

Cassette - Sram SX Eagle 1x12 11-50t
Shift Lever - Sram NX Eagle 1x12 single click
Cockpit

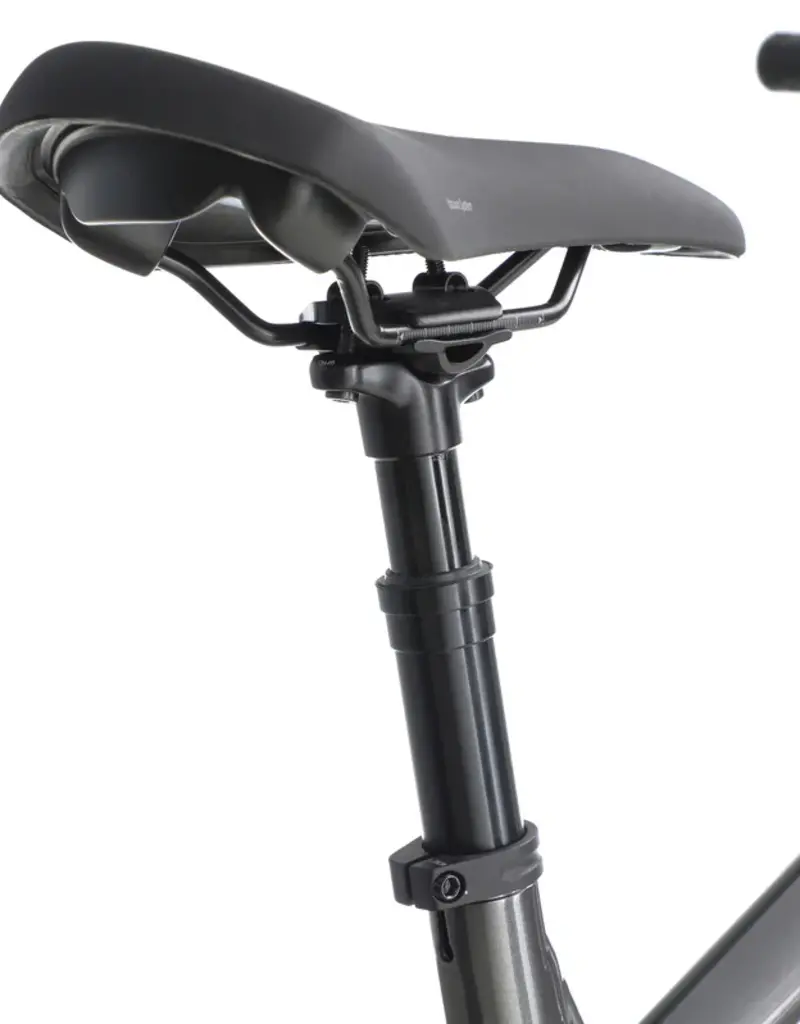

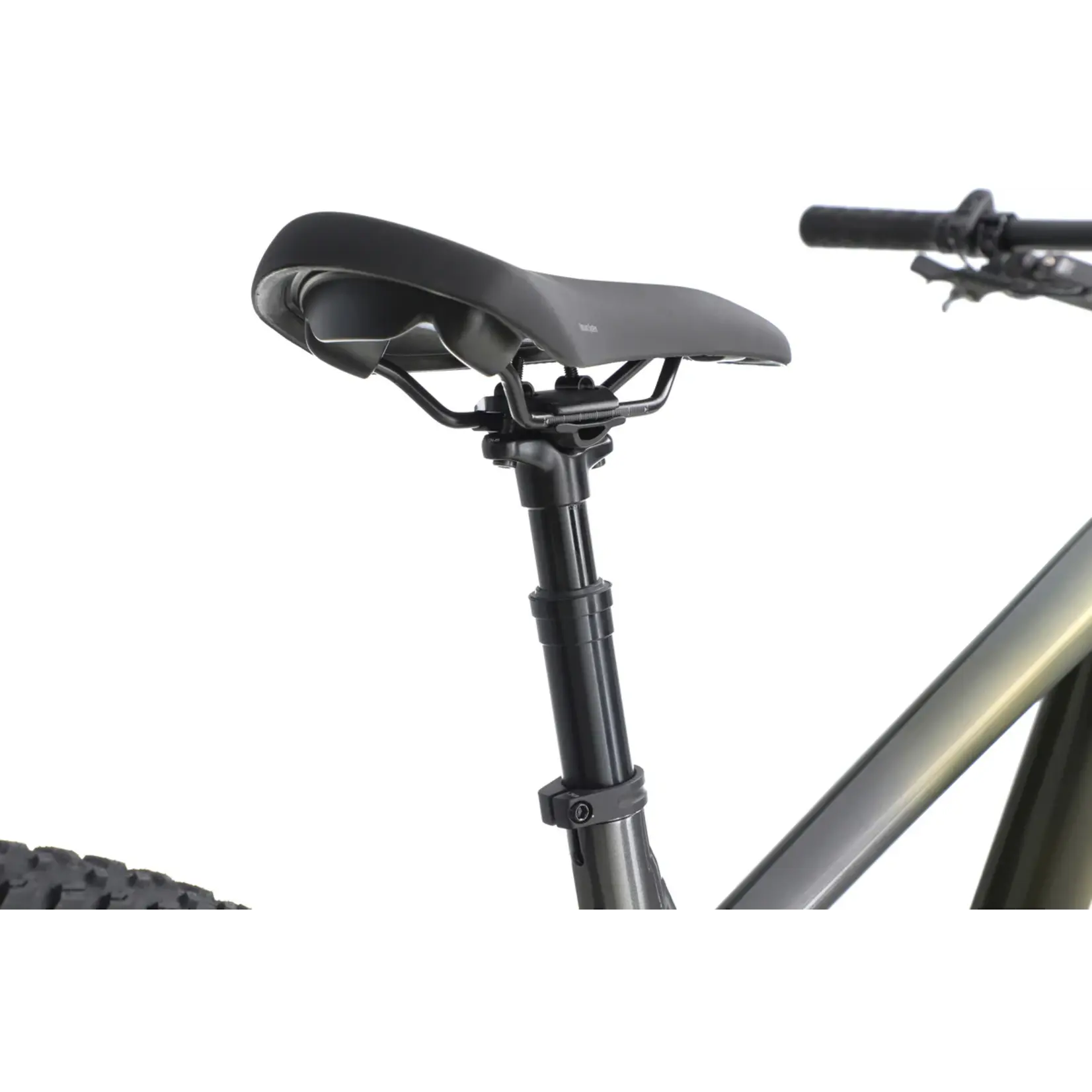

Seatpost - 150mm travel for size M-XL. 125mm travel for size S. 31.6mm ø. 395mm length

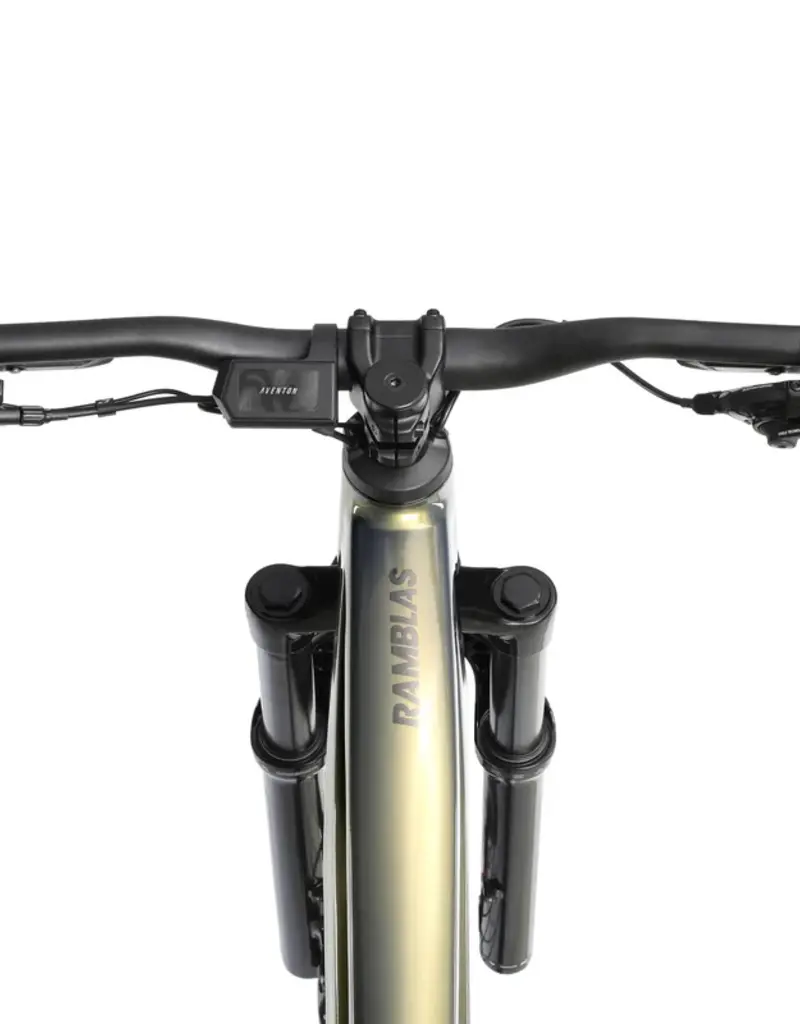

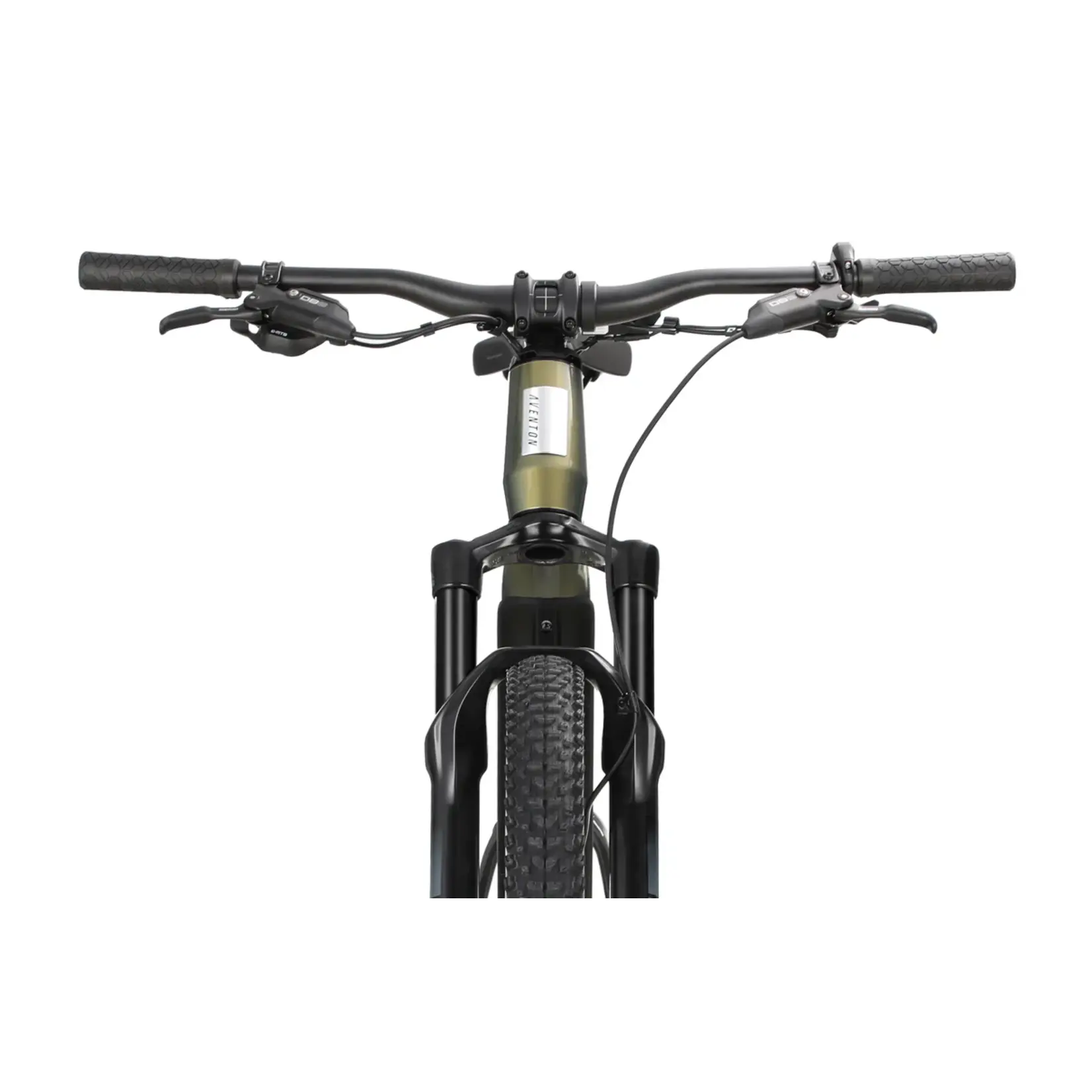

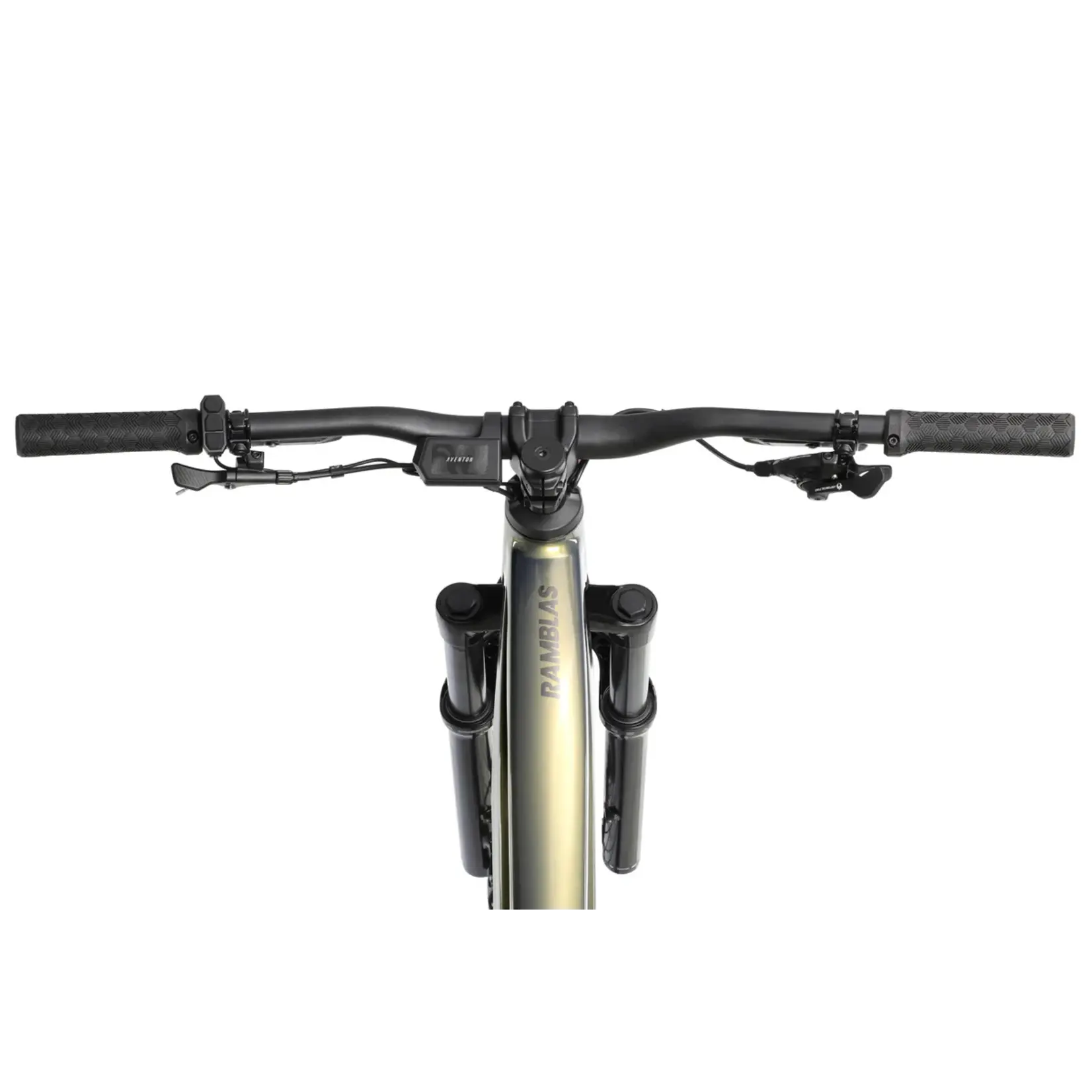

Handlebars - 35mm, 9° rise, 720mm width for size S, 760mm width for size M-XL
Stem - 35mm Ø, 40mm length
Included Accessories
Kickstand - Included in accessory box
Front Head Light - Included in accessory box
Miscellaneous
Suspension - RockShox 130mm travel
Technical Overview
Ramblas comes out of the box as a Class I ebike, with pedal assist. Aventon’s Ramblas is built to the IP67-rated standard. IP67 rating means it’s protected against the effects of immersion in water to a depth between 15 cm and 1 meter. IP67-rated products are referred to as waterproof vs only water-resistant, so you can cross creeks, and ride in rain and mud without worry. Aventon ebikes are not intended to be subjected to a pressurized spray. Do not use a pressure washer or sprayer to clean your ebike.
