Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

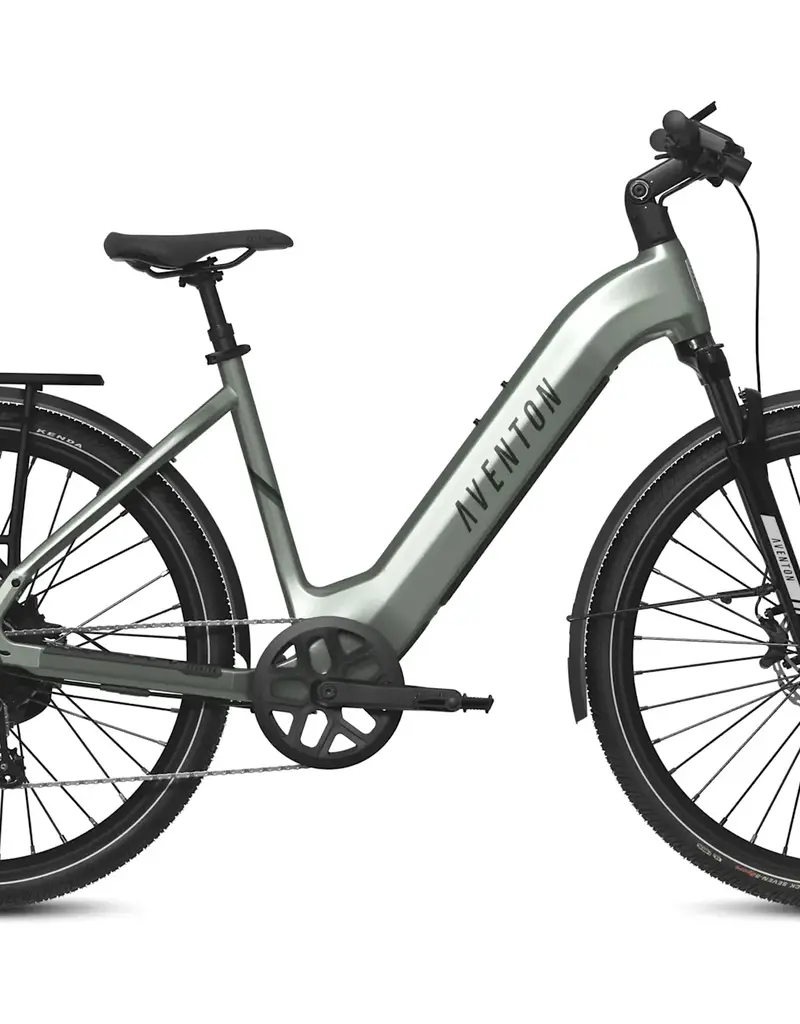

Model - Level 3 Step Through Commuter Ebike
Total Weight Limit - 300 lbs
Rider Height - 4'11" - 6'1"
Ebike Class - Class 2 Ebike
Pedal Assist - 3 Levels (with Ride Tune Customization)
Frameset
Frame - 6061 Aluminum, Gravity Cast Front Triangle
Fork - Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
Frame Style - Step-Through
Wheelset
Front Wheel - 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
Rear Wheel - 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
Tires - Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
eBike System
Motor - 36V, 500W (sustained), 864W (peak)
Battery - Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Charger - 36V Output: 42V/ 4A
Charging time from 0% to 100% - 5 hours
Lights - Front and rear lights integrated
Brakes
Front Brake - Magura AT-2 Hydraulic disc brake
Rear Brake - Magura AT-2 Hydraulic disc brake
Front Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor
Rear Brake Rotor - Magura MDR-A 180mm 6 Bolt Rotor
Drivetrain
Rear Derailleur - Shimano Altus RD-M310
Shifter - Shimano 8 Speed Trigger SL-M315-8R
Cassette - 12-32T / 8 Speed Shimano CS HG200-8
Crankset - 3pc, 170mm crank arm
Bottom Bracket - Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
Pedals - 9/16" Composite Platform
Cockpit
Saddle - Aventon Saddle
Seatpost - 30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars - Aluminum 31.8mm, 680mm
Grips - Aventon Lock on grips
Headset - Sealed Bearing Headset
