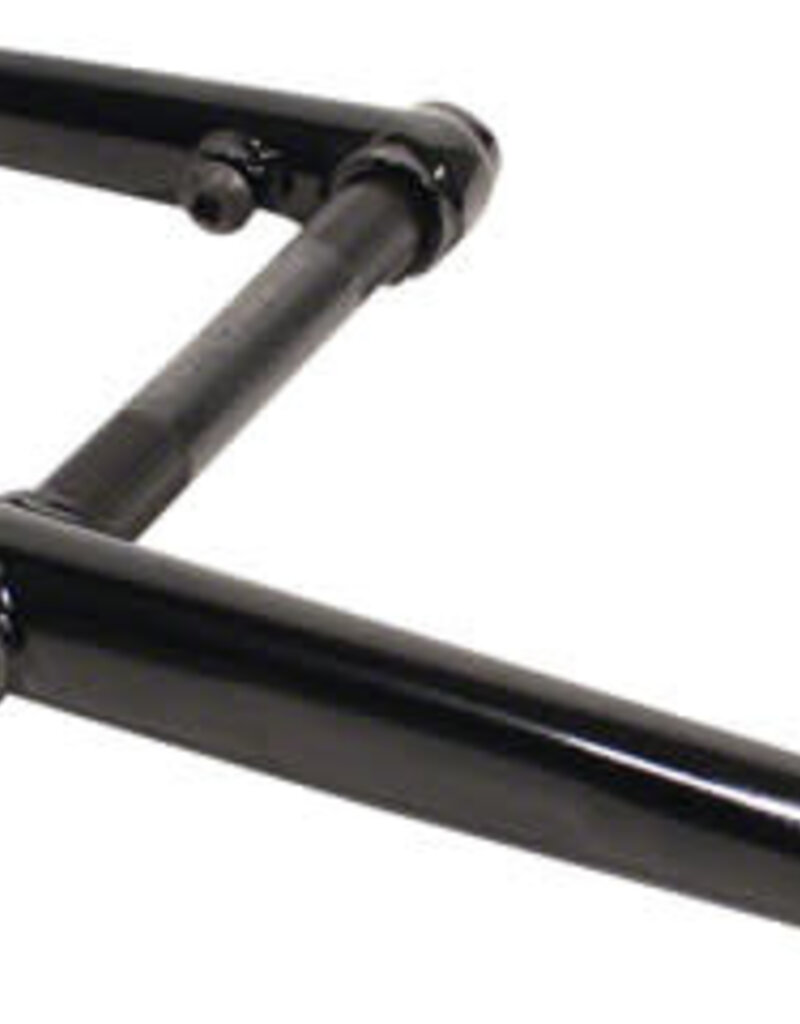

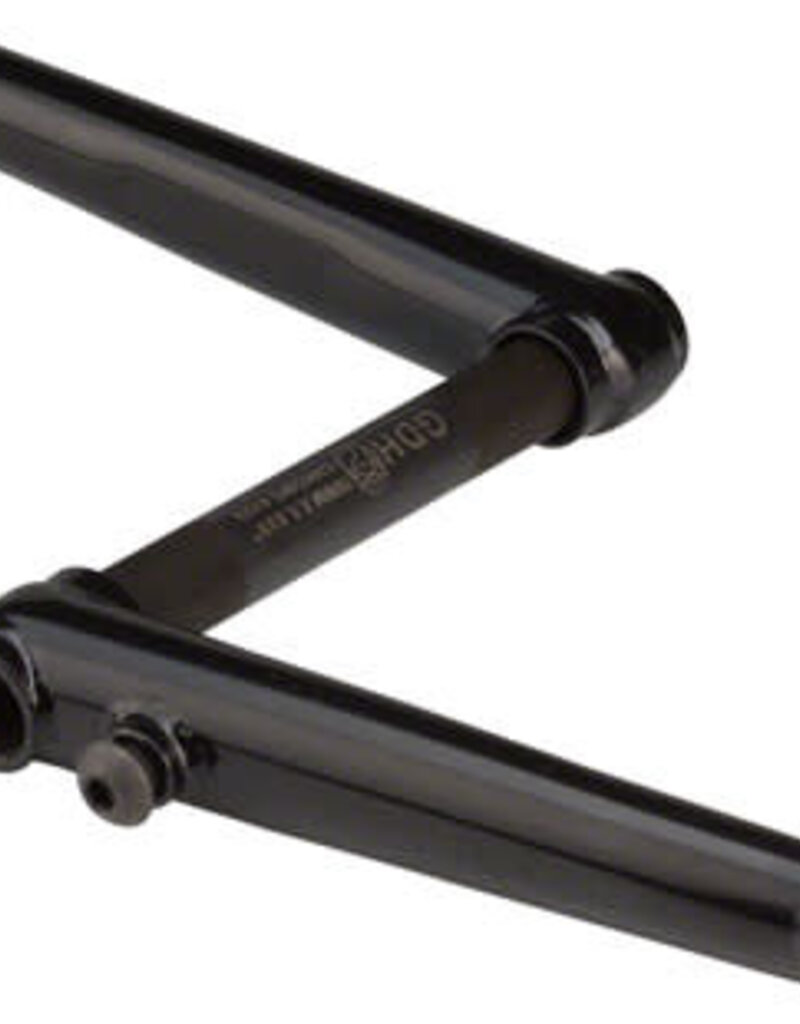

Profile Racing Race Crankset

RHD RACE CRANKSET

The Profile Racing Chrome Moly Race Crankset(RHD) is everything you need to run Profile cranks except the bottom bracket (which is sold seperately).

*The Profile 19mm ‘Race Crank’ is made for any type of riding, whether it be Bmx Race, Bmx Freestyle, or MTB.

Right hand crank arm has sprocket boss.

RHD crankset includes crank arms, 19mm GDH heat-treated CrMo axle, GDH CrMo axle bolts, flush  washers, sprocket bolt, and crank installation/removal tool.

Titanium upgrades available for axle, axle  bolts, and sprocket bolt.

Guide for 19mm axle lenghts:

• 5.625″(for Mid,American,Spanish,and internal Euro BB’s)
• 6.0″(for 68mm & 73mm external Euro BB’s)
• 6.875″(for 83mm & 100mm Euro BB’s)
• 5.25″(for Track 68mm internal Euro BB’s)

BOTTOM BRACKET SOLD SEPARATELY

Lifetime Warranty to original purchaser.

Crank Arm Weight (per set):

• 145mm: 505g/17.75oz
• 160mm: 539g/18.95oz
• 165mm: 561g/19.75oz
• 170mm: 562g/19.8oz
• 175mm: 572g/20.15oz
• 177mm: 577g/20.3oz
• 180mm: 590g/20.8oz
• 182mm: 596g/21oz
• 185mm: 588g/20.75oz
• 190mm: 613g/21.6oz

Axle Weight:

• Chromo 5.25in: 227g/8oz Titanium: 148g/5.2oz
• Chromo 5.625in: 245g/8.6oz Titanium: 156g/5.5oz
• Chromo 6.0in: 259g/9.1oz Titanium: 163g/5.7oz
• Chromo 6.875in: 296g/10.4oz Titanium: 199g/6.96oz
