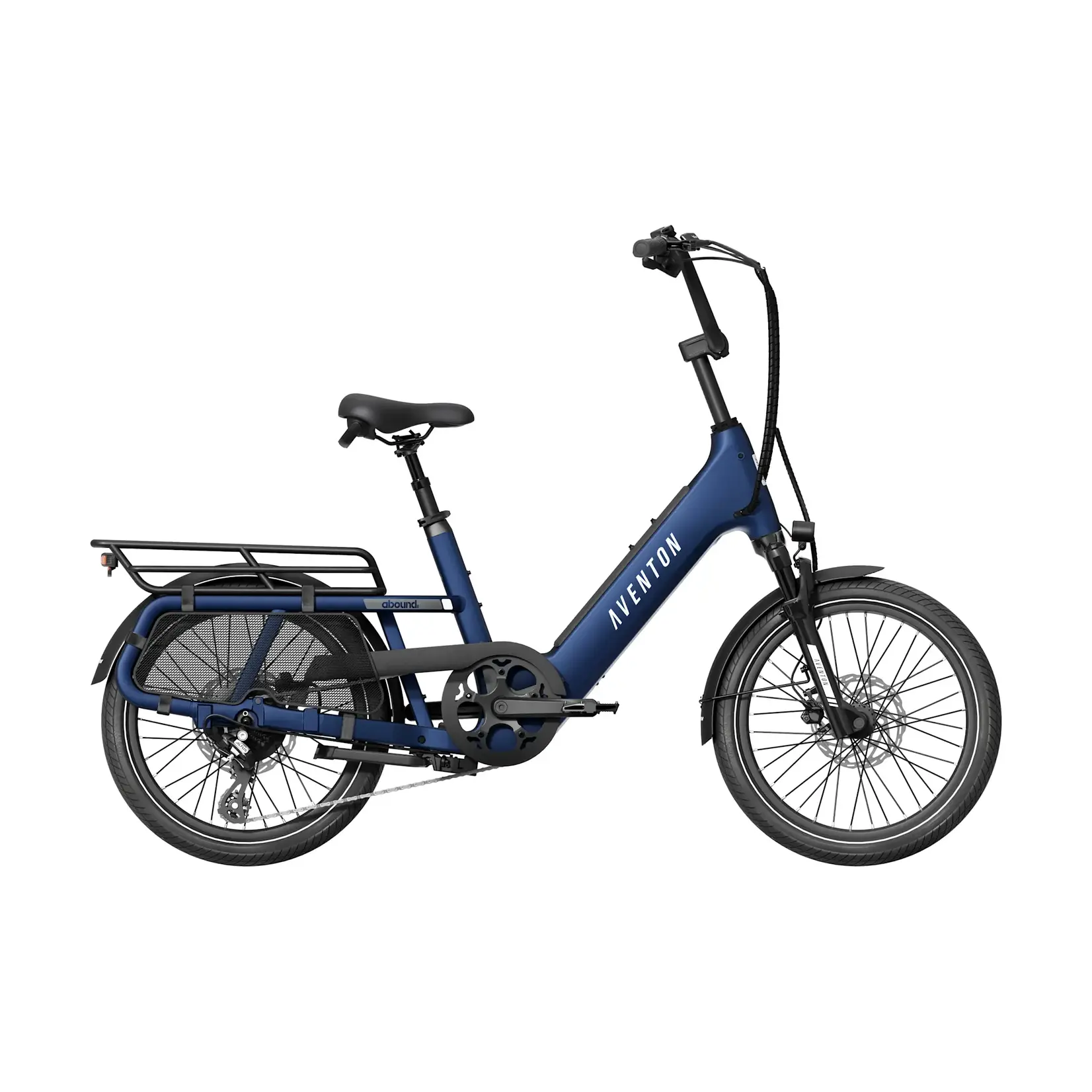

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security and GPS features give you total peace of mind.
Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.
It’s SRsly fun.
General Info
Total Weight Limit - 440 lbs
Rider Height - 4'11" - 6'3"
Ebike Class - Class 2 Ebike
Ideal Use - Cargo & Utility
Pedal Assist - 3 Levels (with Ride Tune Customization)
Carry Capacity - Carry A Single Passenger
Water Resistance - Bike - IPX5 // Components - IPX6
Frameset
Fork - Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style - Step-Through
Frame - 6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
eBike System
ECU - Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle - Aventon LH Handlebar Mounted
Sensors - Double Sided Bottom Bracket Torque Sensor
Battery - Aventon 36V, 20Ah, 733Wh, LG 21700 cells
Motor - Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Brakes
Rear Brake Rotor - Tektro 203mm 6 bolt
Front Brake - Tektro HD-E3520 hydraulic disc brakes
Rear Brake - Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor - Tektro 180mm 6 bolt
Drivetrain
Chain - 122 Link, 8 Speed
Crankset - 3pc, 165mm crank arm
Rear Derailleur - Shimano Altus RD-M310 8 Speed
Shift Lever - Shimano SL-M315-8R 8 Speed
Cassette - Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals - 9/16" Composite Platform
Cockpit
Saddle - Aventon by SelleRoyal
Seatpost - 30.9mm Aventon Suspension Seatpost with 50mm travel
Handlebars - BMX Style, 31.8mm bar clamp, 680mm width
Stem - Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp - 34.9mm Quick Release
Grips - Lock-on ergonomic
Included Accessories
Kickstand - Included: E-lock
Rear Wheel Mesh Guards - Included
Rear Rack Weight Limit - 143 lbs
Wheelset
Tires - 20 x 3.0 urban tire with reflective sidewalls
Wheels - 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
