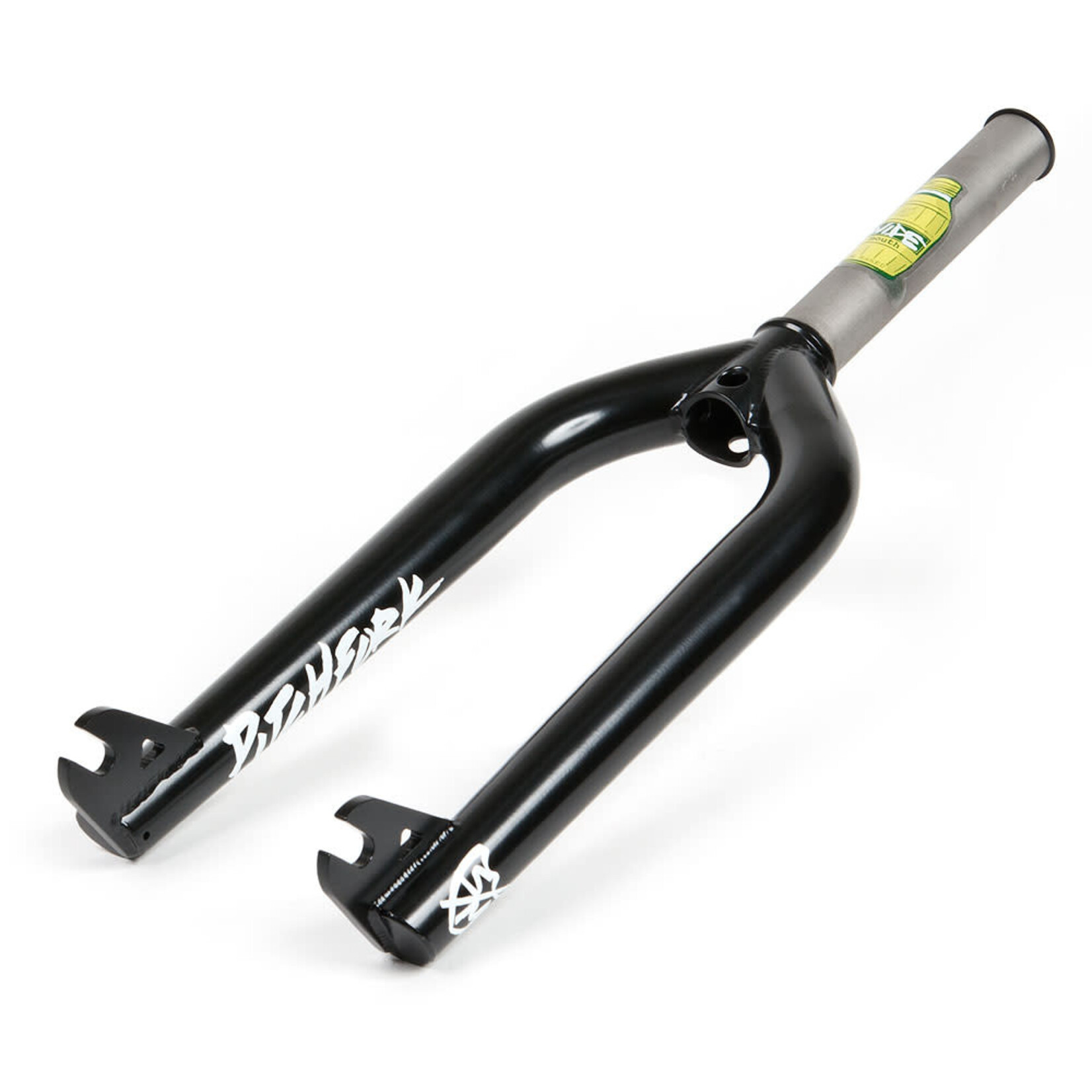

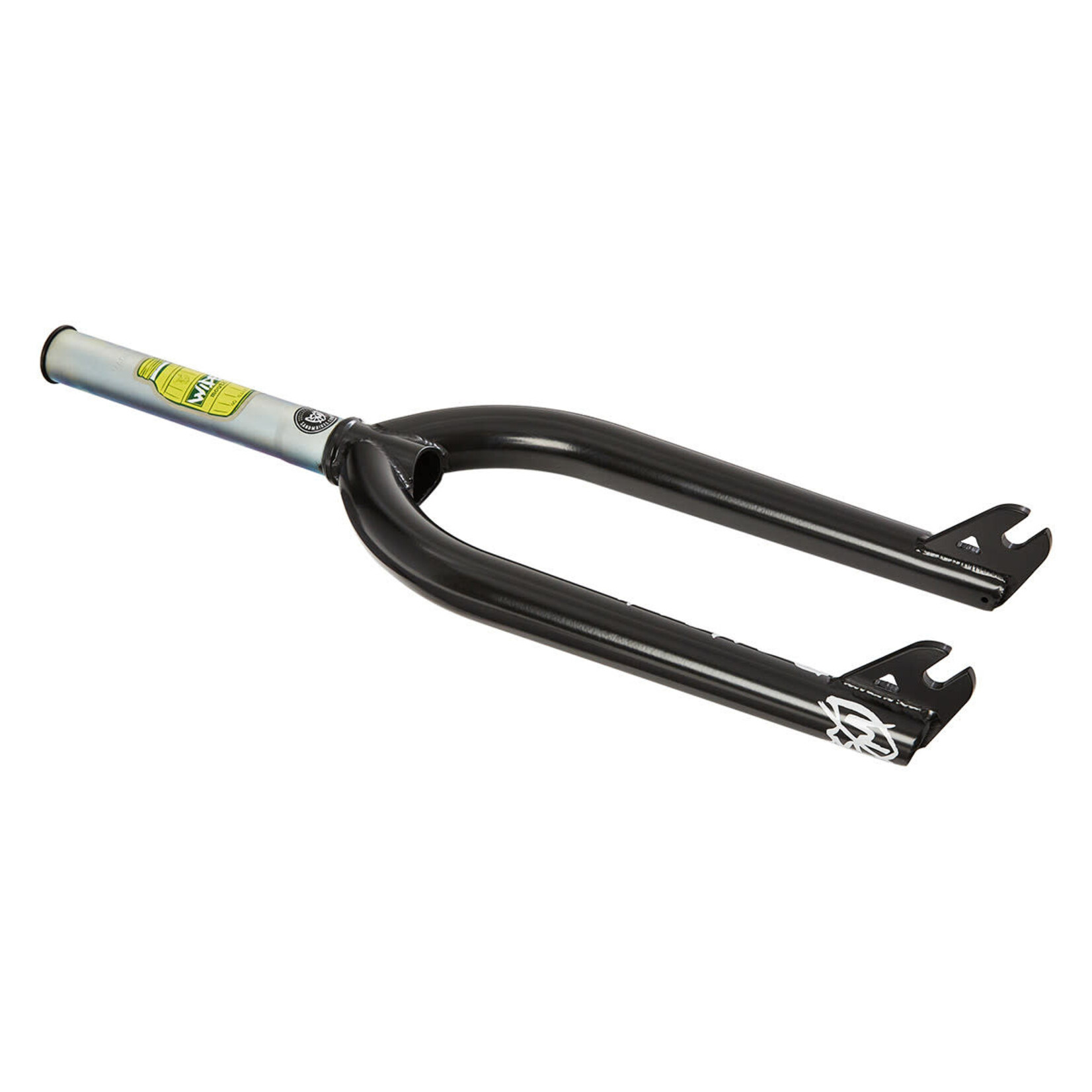

CloseThe Widemouth fork features everything you know and trust from S&M forks–the finest quality construction and made to withstand the hardest riding you can dish out. The Widemouth name comes from a larger curve radius that creates increased clearance for the larger tire sizes found on modern bikes. A traditional 33mm offset provides stability and control on all terrains and at any speed. Available for 20 and 22″ wheel sizes.
MADE IN USA
| LEGS | Double Butted, Tapered, 4130 CrMo |
| DROPOUTS | Laser Cut 3/8″ Slot |
| STEERER TUBE | Integrated Bearing Race. 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert |
| STEERER TUBE LENGTH | 173mm |
| COMPRESSION | M24 X 1.5 Thread – 6mm Allen Slot |
| AXLE TO CROWN HEIGHT | 20″ – 320mm |
| OFFSET | 33mm |
| WEIGHT | 1.99 lb (.90 kg) 20″ |
| HEAT TREAT | 4Q Baked Post-Weld |
| TIRE CLEARANCE | 2.45″ |
