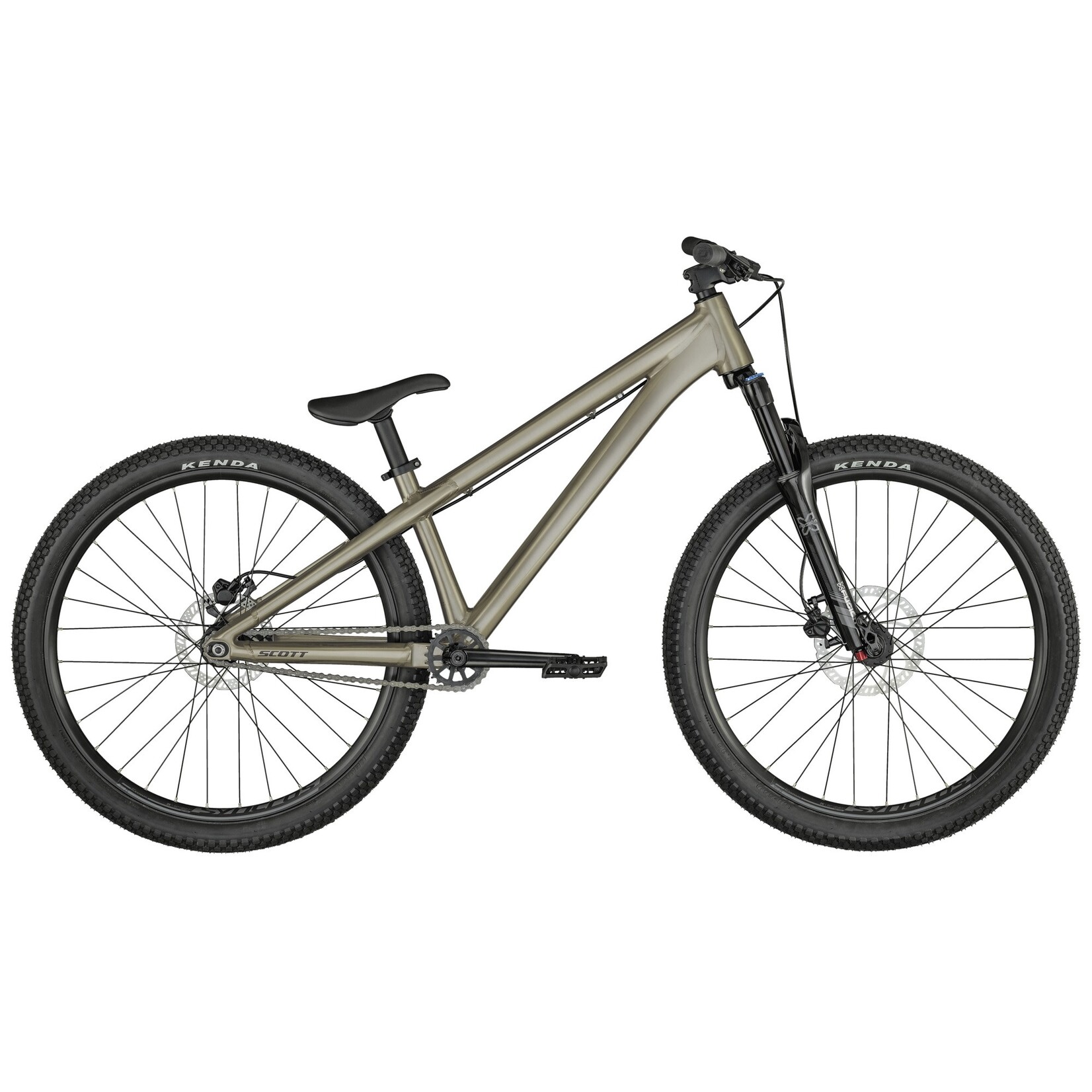

The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame. Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin' through the streets.
FRAME
Voltage YZ DJ 6061 Alloy
Hydroformed tubing
Disc Dropout / horizontal for 135x10mm singleSpeed
FORK
X-Fusion Slant DJ
100mm travel / Air / Lo Comp / Rebound
CRANKSET
SCOTT Cr-Mo 3-piece cranks
170mm / 25T Alloy BMX sprocket
BB-SET
Jien-Yuan BB92 / 19mm Axle
CHAIN
KMC Z510
CASSETTE
Sprocket / 12 T
BRAKES
Tektro HDM275 Hydr. Disc
ROTOR
Tektro / 6 Bolt / 160mm
HANDLEBAR
Syncros Hixon 2.0 Rise
31.8mm / 800mm / 20mm Rise
Syncros Pro DH lock-on grips
H'STEM
Syncros XM1.5
31.8mm / 40mm / 0°
SEATPOST
Syncros DJ1.5 / Pivotal / 31.6mm
SEAT
Syncros DJ1.5 / Pivotal
HEADSET
Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8"
OD 50/62mm / ID 44/56mm
HUB (FRONT)
Formula DC-51 / 15x100mm / thru axle
HUB (REAR)
Formula DC42-N
w/tracknut / single Speed
SPOKES
Stainless 14G / black / 2.0mm
RIMS
Syncros MD25 Disc / 32H
FRONT TIRE
Kenda K905 K-RAD
30TPI / wire / 26x2.3"
REAR TIRE
Kenda K905 K-RAD
30TPI / wire / 26x2.3"
PEDALS
Wellgo B107.N flat
APPROX WEIGHTS IN KG
12.80 (with tubes)
APPROX WEIGHTS IN LBS
28.22 (with tubes)
MAX. SYSTEM WEIGHT
128 kg
